Главная Каталог продукции Toolunited 11 201-02 - Square insert SNMG 190616 ZA TT3500

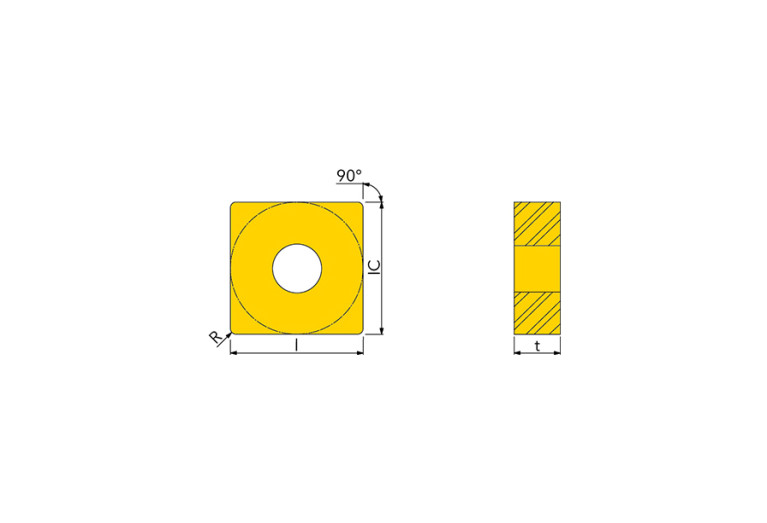

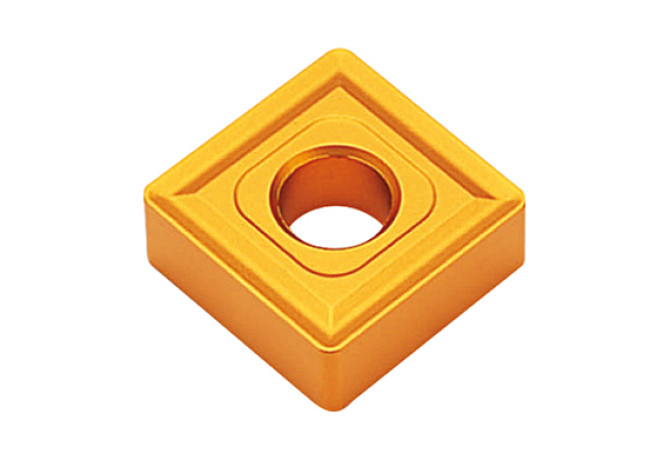

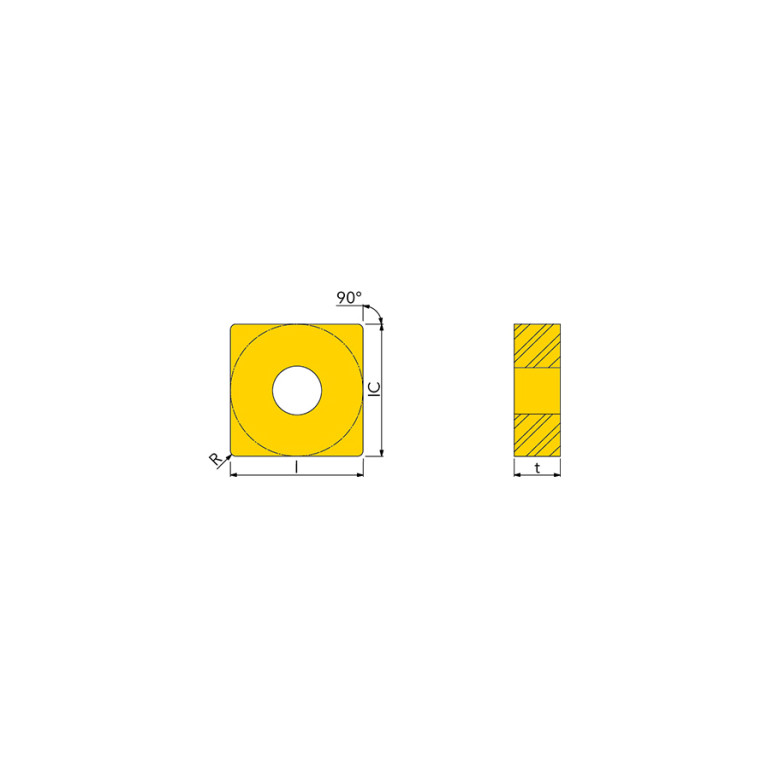

SNMG 190616 ZA TT3500

Артикул: 5516130

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN1906162N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for medium roughing

GRDMFG Grade manufacturers designation

ZA TT3500

IC Inscribed circle diameter

19.05 mm

ID Technical product number

5516130

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

17.4 mm

LE Cutting edge effective length

5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1906162N

MIID Master insert identification

SNMG190616 ZA TT3500

Name Identifying order number

SNMG 190616 ZA TT3500

RE Corner radius

1.6 mm

S Insert thickness

6.35 mm

S1 Insert thickness total

6.35 mm

STDDES Standard designation

SNMG190616

STDDESAnsi Standard designation ANSI

SNMG644

TCINS Tolerance class insert

Working process

No working processes available
