Главная Каталог продукции Toolunited 11 201-02 - Square insert SNMG 120408 ET TT3020

SNMG 120408 ET TT3020

Артикул: 6336777

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

AlTiN/TiN

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

SN1204082N

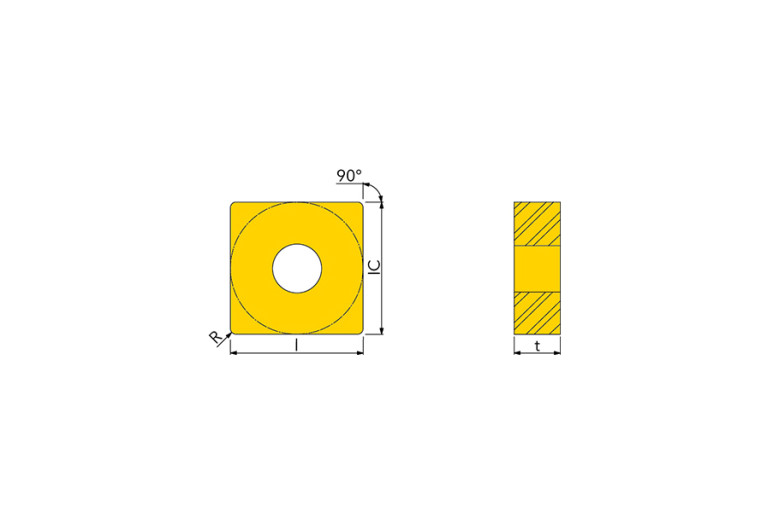

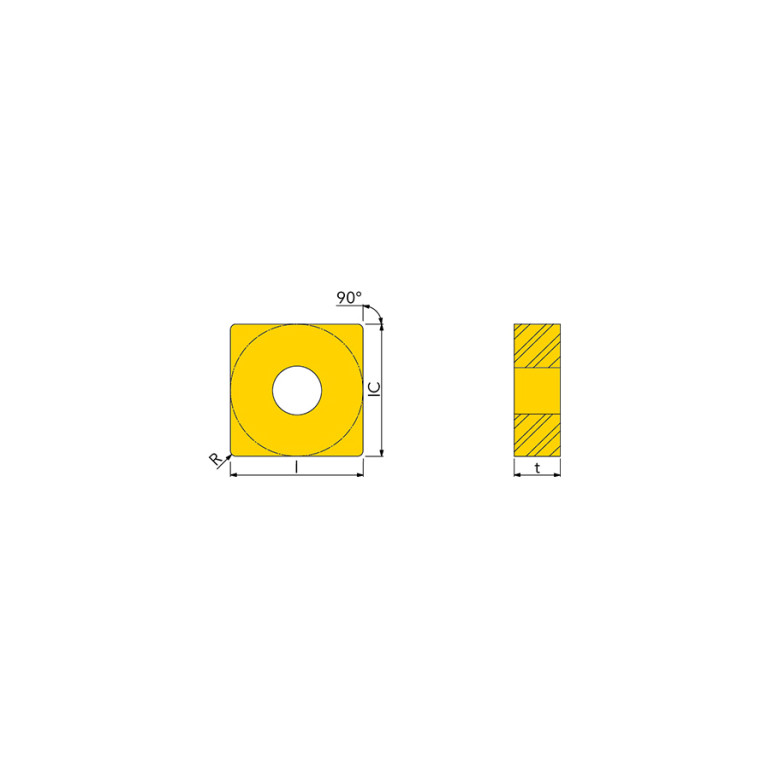

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° square inserts for roughing / exotic material

GRD2ND Standard designation of the grade 2nd application

M10-M30

GRD3RD Standard designation of the grade 3rd application

S10-S30

GRDMFG Grade manufacturers designation

TT3020

IC Inscribed circle diameter

12.7 mm

ID Technical product number

6336777

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.9 mm

LE Cutting edge effective length

3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204082N

MIID Master insert identification

SNMG120408 TT3020

Name Identifying order number

SNMG 120408 ET TT3020

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SNMG120408

STDDESAnsi Standard designation ANSI

SNMG432

TCINS Tolerance class insert

Working process

No working processes available
