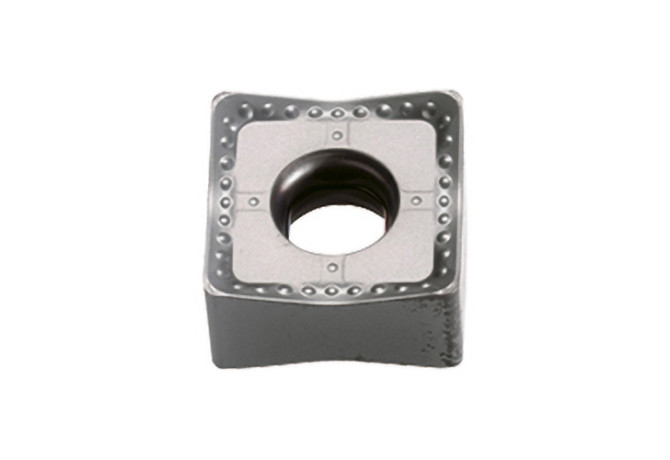

Главная Каталог продукции Toolunited 11 201-02 - Square insert SNGU130608TN IN2010

SNGU130608TN IN2010

Артикул: 5872242

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

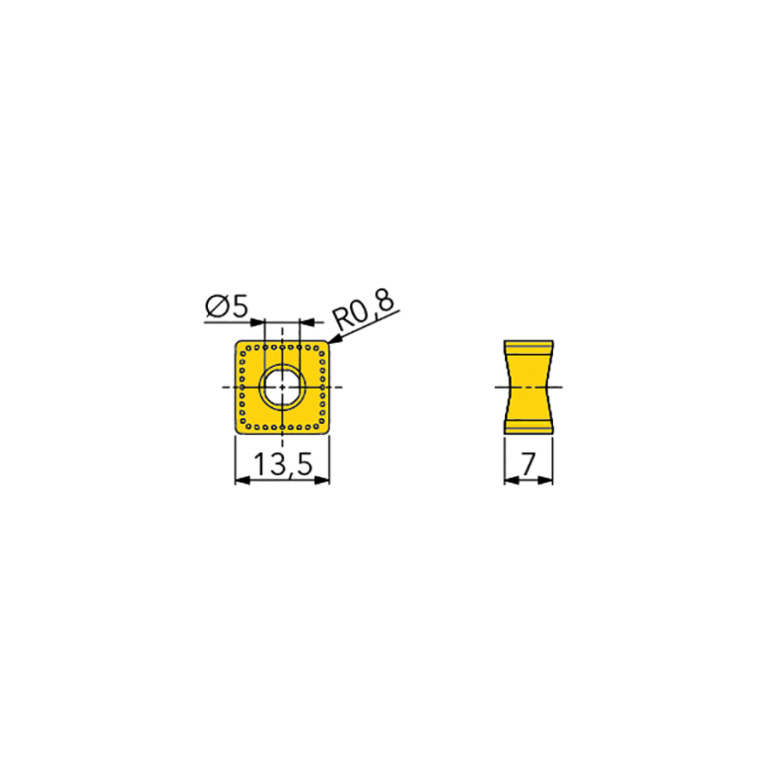

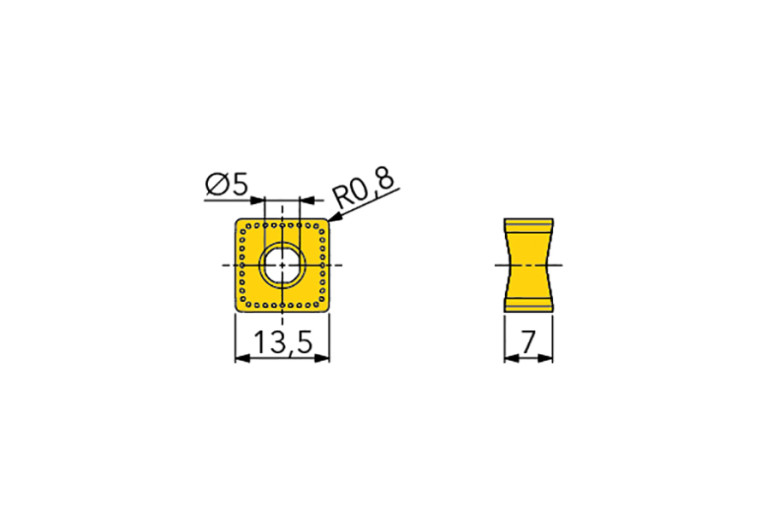

D1 Fixing hole diameter

5 mm

Delivery state

NL - Discontinued

DIN

SN1306 5N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, eight-edged, positive geometry

GRD2ND Standard designation of the grade 2nd application

K10-K30

GRDMFG Grade manufacturers designation

IN2010

IC Inscribed circle diameter

13.5 mm

ID Technical product number

5872242

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.87 mm

LE Cutting edge effective length

11.4 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1306 5N

Name Identifying order number

SNGU130608TN IN2010

RE Corner radius

0.8 mm

S Insert thickness

6.96 mm

S1 Insert thickness total

6.96 mm

STDDES Standard designation

SNGU130608TN

TCINS Tolerance class insert

Working process

No working processes available
