Главная Каталог продукции Toolunited 11 201-02 - Square insert SNGN 120408 TT8115

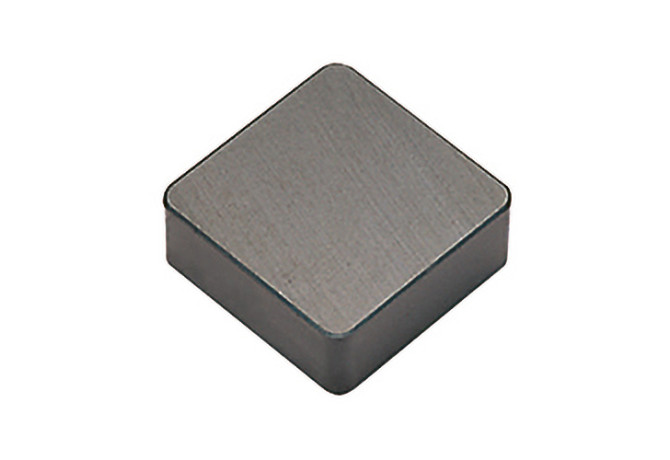

SNGN 120408 TT8115

Артикул: 5518565

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

SN1204081N

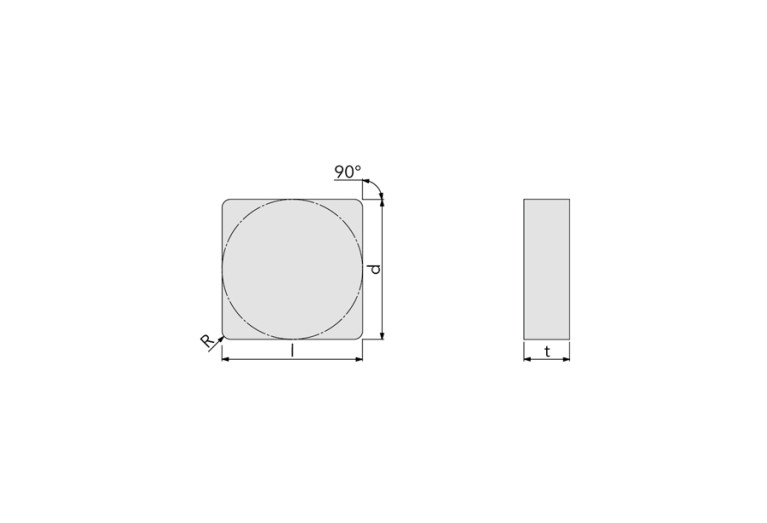

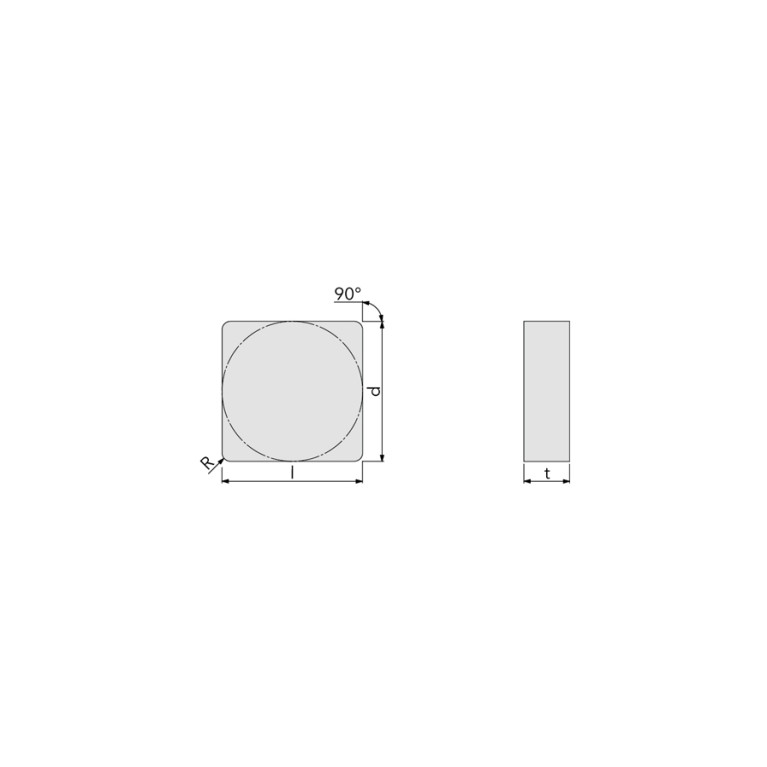

EPSR Insert included angle

90 Degree

FamilyProducts

insert, Negative 90° Ceramic Insert

GRDMFG Grade manufacturers designation

TT8115

GRDPRIO Standard designation of the grade main application

P05-P20

IC Inscribed circle diameter

12.7 mm

ID Technical product number

5518565

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN1204081N

Name Identifying order number

SNGN 120408 TT8115

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

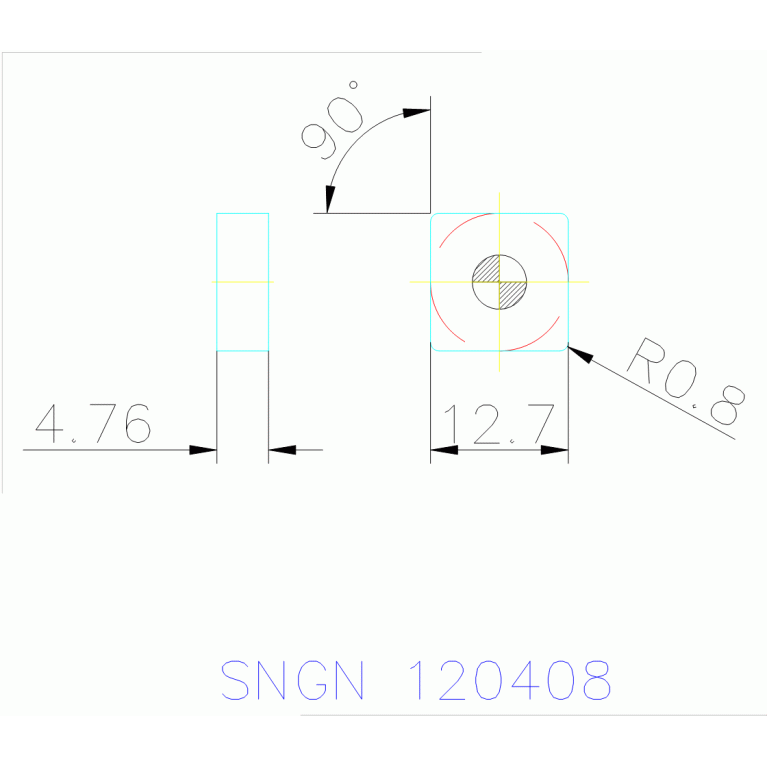

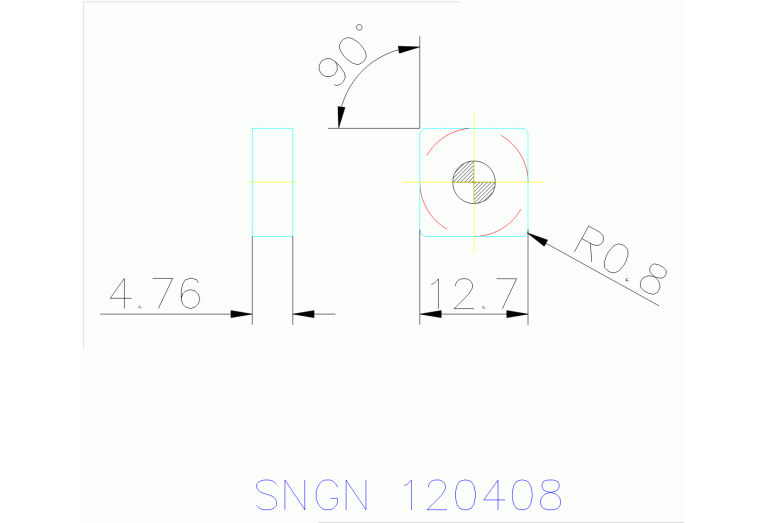

STDDES Standard designation

SNGN120408

STDDESAnsi Standard designation ANSI

SNGN432

TCINS Tolerance class insert

Working process

No working processes available
