Главная Каталог продукции Toolunited 11 201-02 - Square insert SNCG11T308TN-W IN4005

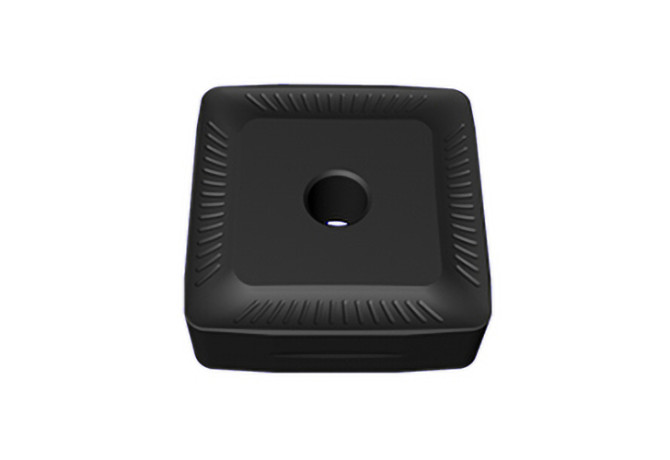

SNCG11T308TN-W IN4005

Артикул: 3096402

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

Delivery state

LL - Stock limited

DIN

SN11T3 2N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, 8-edged (4RH + 4LH) wiper insert

GRD2ND Standard designation of the grade 2nd application

M15-M35

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN4005

GRDPRIO Standard designation of the grade main application

P15-P30

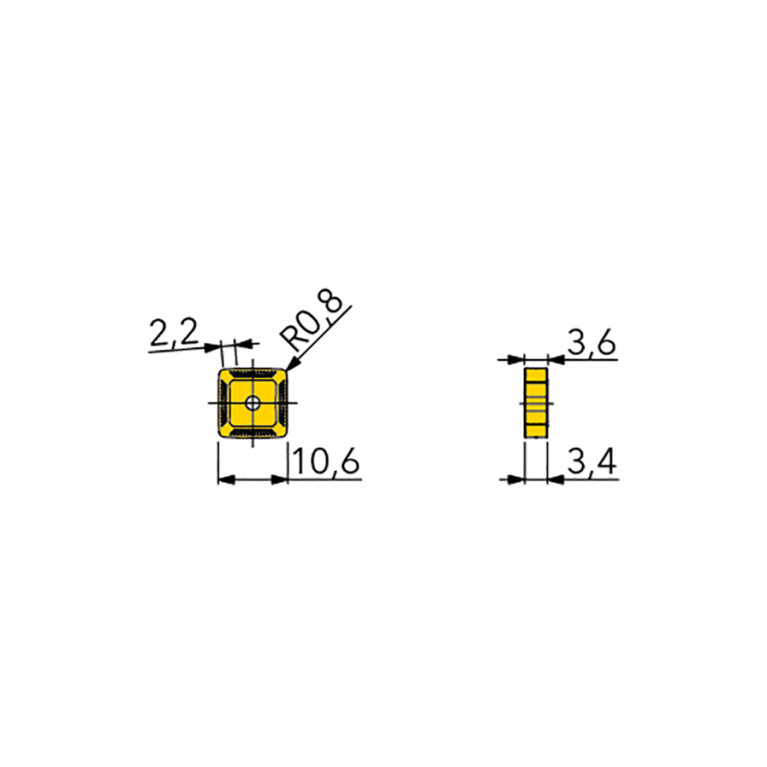

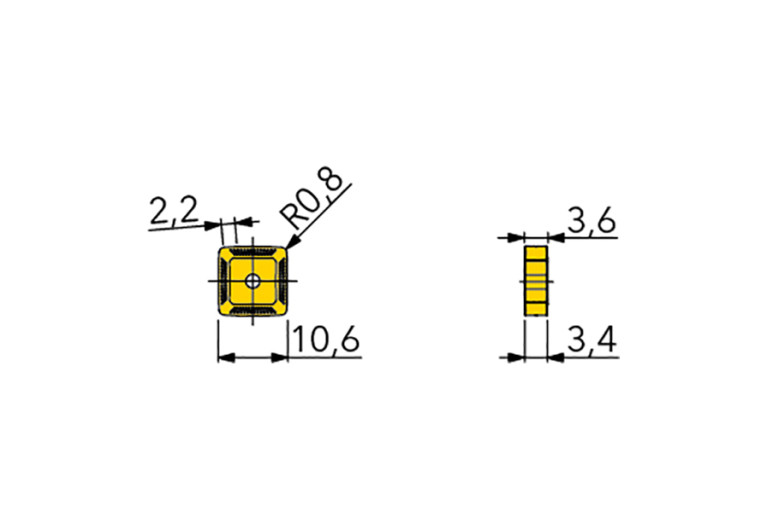

IC Inscribed circle diameter

10.6 mm

ID Technical product number

3096402

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

2.25 mm

LE Cutting edge effective length

8.3 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SN11T3 2N

Name Identifying order number

SNCG11T308TN-W IN4005

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

S1 Insert thickness total

3.4 mm

STDDES Standard designation

SNCG11T308TN

STDDESAnsi Standard designation ANSI

SNCG3.52.52TN

TCINS Tolerance class insert

Working process

No working processes available
