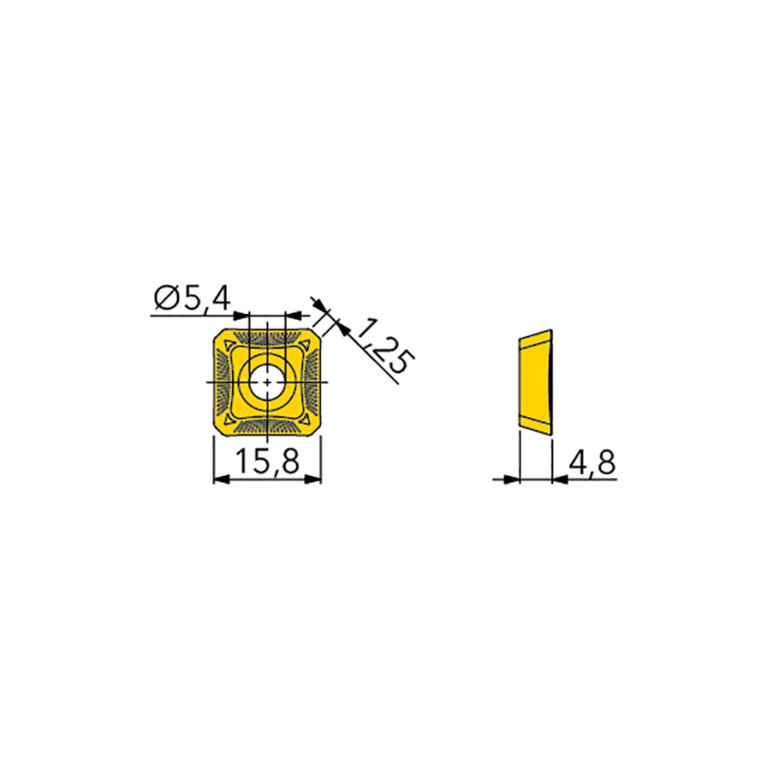

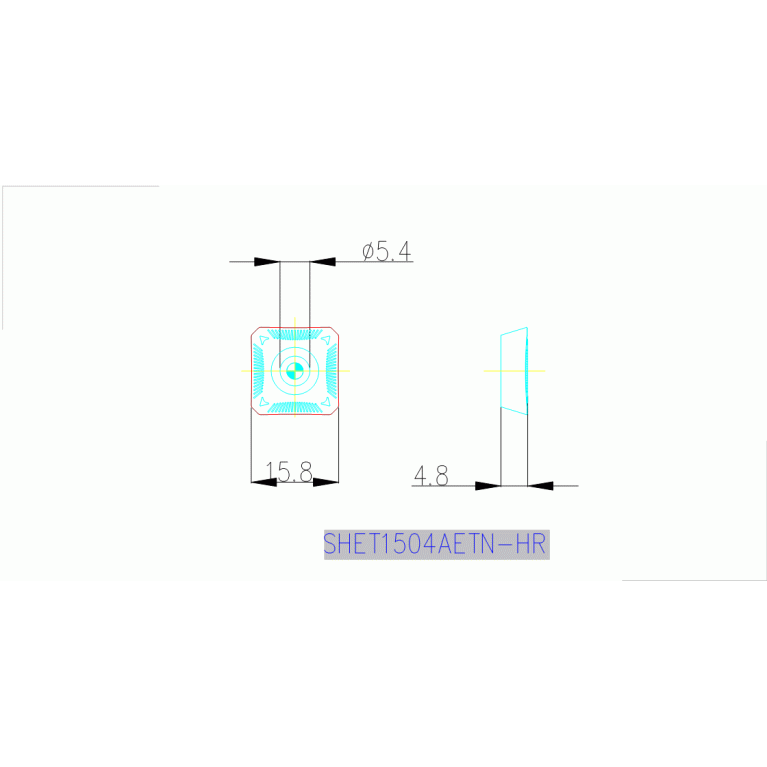

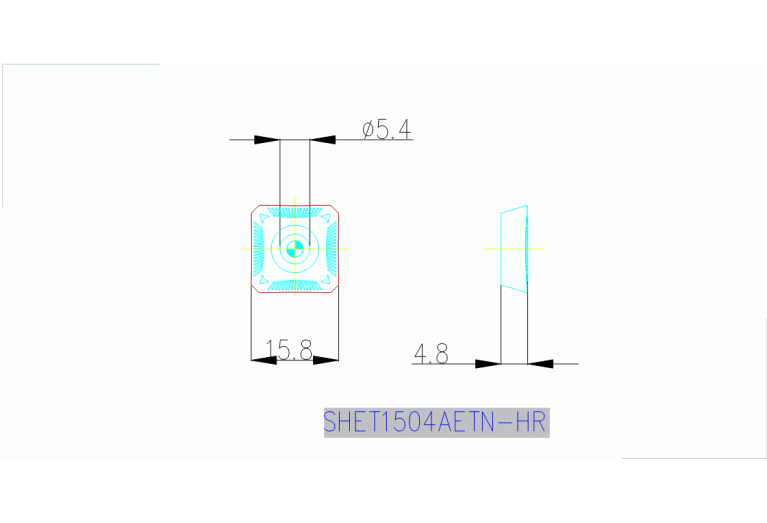

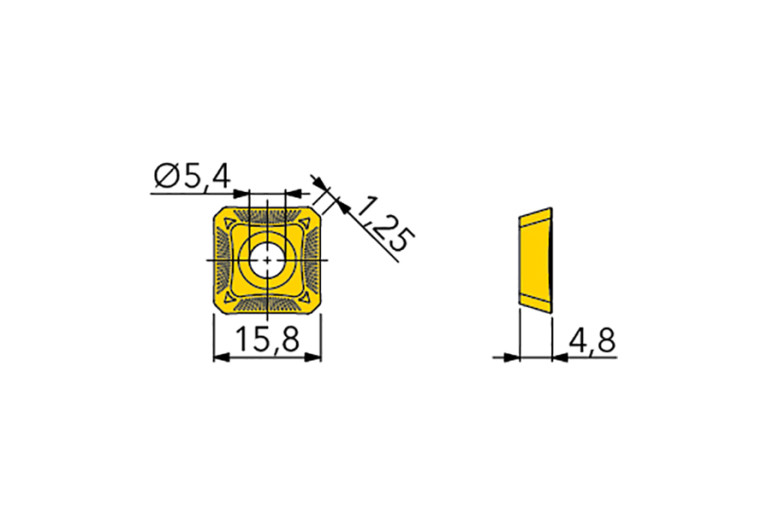

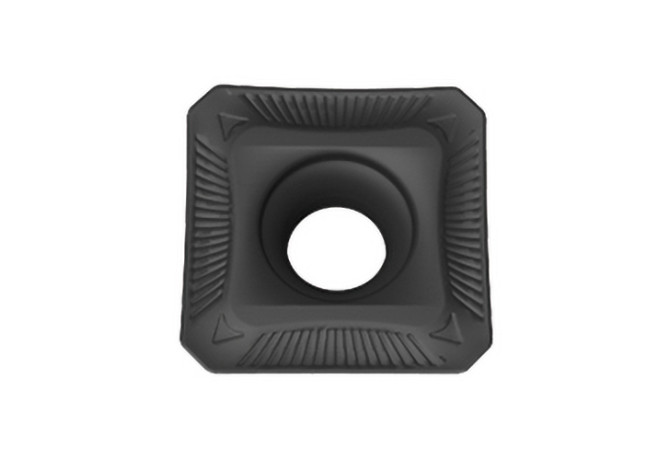

SHET1504AETN-HR IN2035

Артикул: 5860423

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

17 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

5.4 mm

Delivery state

NL - Discontinued

DIN

SH1504 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN2035

GRDPRIO Standard designation of the grade main application

P25-P50

IC Inscribed circle diameter

15.88 mm

ID Technical product number

5860423

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.52 mm

LE Cutting edge effective length

9 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SH1504 3N

Name Identifying order number

SHET1504AETN-HR IN2035

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

SHET1504AE

TCINS Tolerance class insert

Working process

No working processes available
