Главная Каталог продукции Toolunited 11 201-02 - Square insert SEET09T308PER-APF YBM351

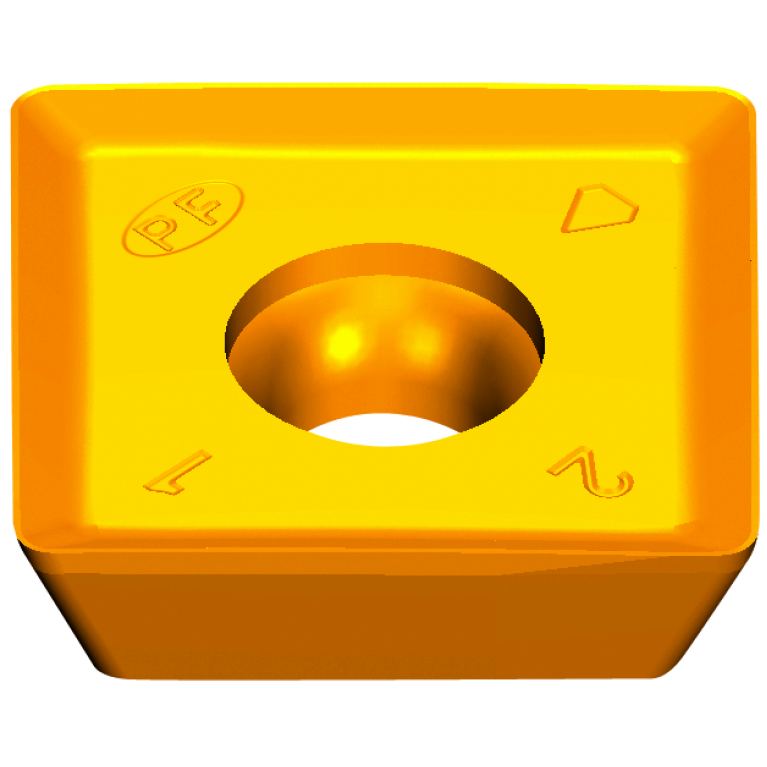

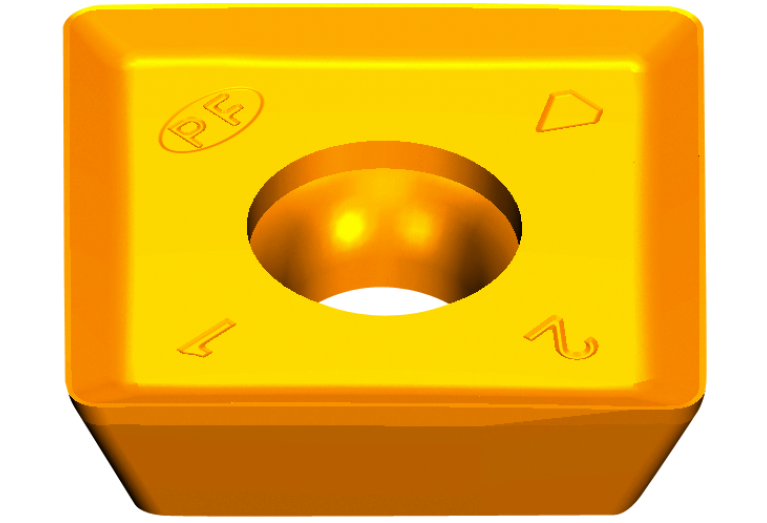

SEET09T308PER-APF YBM351

Артикул: SEET09T308PER-APF YBM351

В наличии

В корзину

Описание

Характеристики

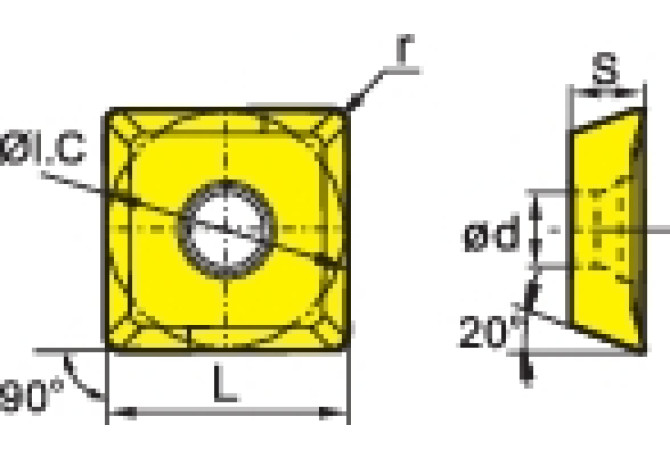

AN Clearance angle major

20 Degree

CBMD Chip breaker manufacturers designation

APF

COATN Coating / Покрытие

MT-TiCN,Al2O3,TiN

COMPC Company code

ZCC - ZCC Cutting Tools

D1 Fixing hole diameter

3.3 mm

Delivery state

SF - Made to order

DIN

SE1203083N

EPSR Insert included angle

90 Degree

FamilyProducts

SD** milling insert

GRD2ND Standard designation of the grade 2nd application

HC P 30

GRDMFG Grade manufacturers designation

YBM351

GRDPRIO Standard designation of the grade main application

HC M 30

IC Inscribed circle diameter

9.525 mm

ID Identifying order number

SEET09T308PER-APF YBM351

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

R - Right

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.525 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE1203083N

NOI Insert index count

RE Corner radius

0.8 mm

S Insert thickness

4.01 mm

S1 Insert thickness total

4.01 mm

TCINS Tolerance class insert

Working process

FEC - Square shoulder milling
