SECT09T3AFFN-P IN30M

Артикул: 5880157

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COMPC Company code

IL - Ingersoll

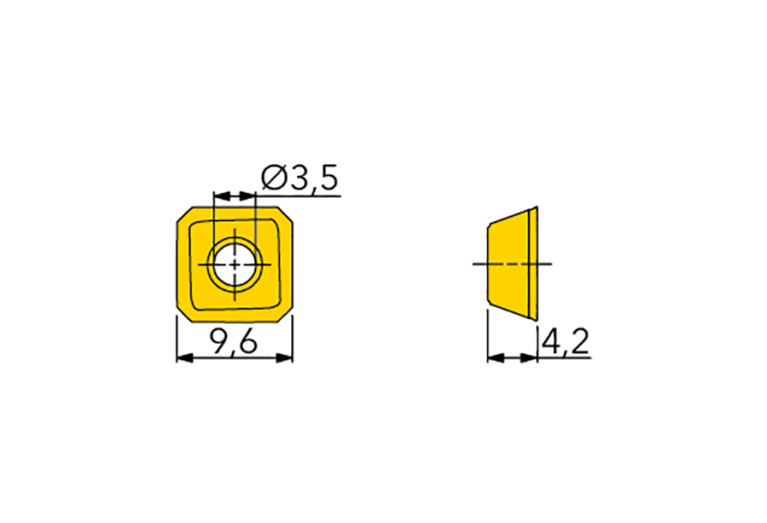

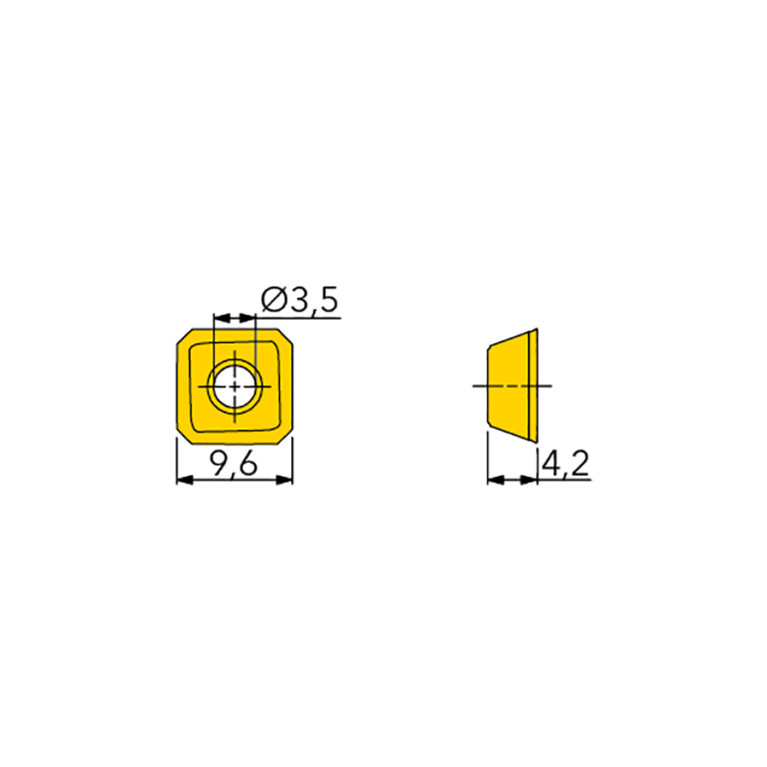

D1 Fixing hole diameter

3.55 mm

Delivery state

LH - Stocked

DIN

SE09T3 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive, polished and sharp-edged geometry for non-ferrous materials

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K50

GRDMFG Grade manufacturers designation

IN30M

IC Inscribed circle diameter

9.6 mm

ID Technical product number

5880157

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

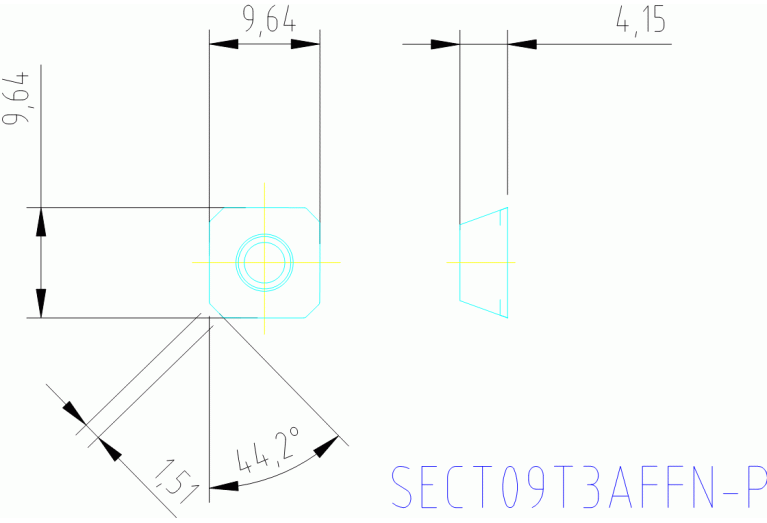

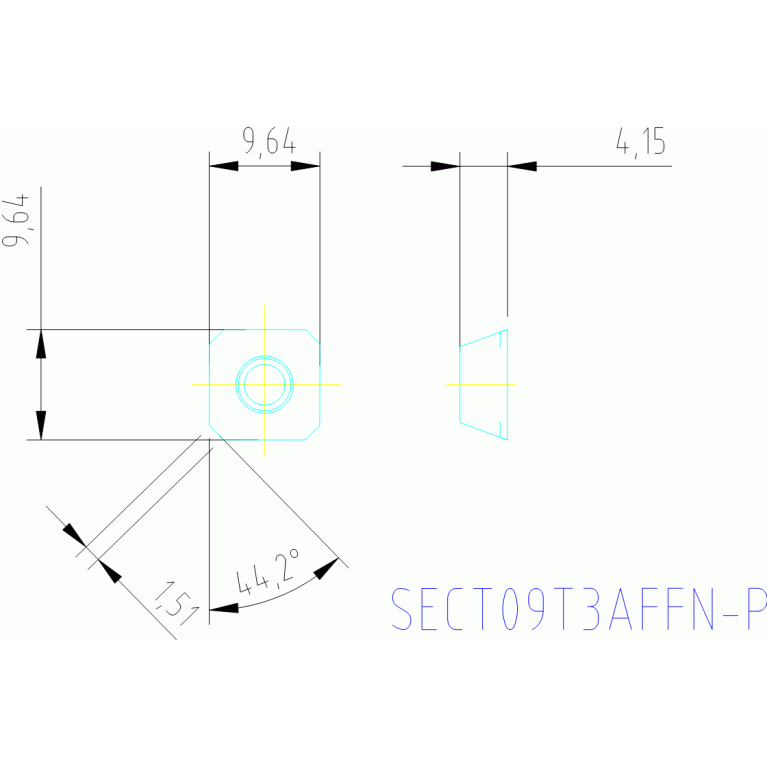

KRINS Cutting edge angle major

44.2 Degree

L Cutting edge length

6.877 mm

LE Cutting edge effective length

4.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE09T3 3N

Name Identifying order number

SECT09T3AFFN-P IN30M

S Insert thickness

3.97 mm

S1 Insert thickness total

4.19 mm

STDDES Standard designation

SECT09T3AF

TCINS Tolerance class insert

Working process

FPL - Face milling,FPR - Profile milling
