Главная Каталог продукции Toolunited 11 201-02 - Square insert SECT09T3AFFN IN2040

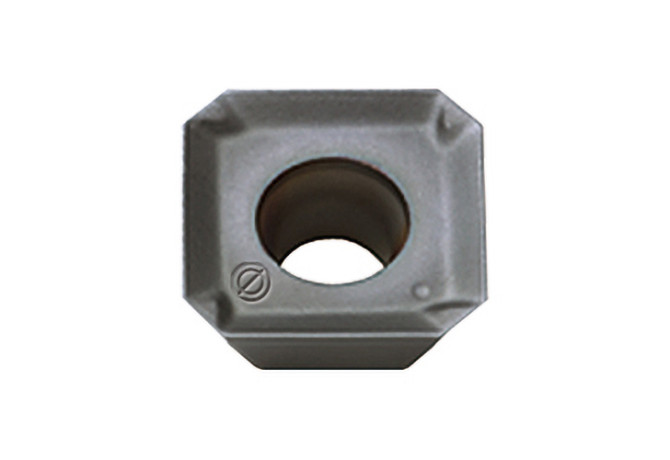

SECT09T3AFFN IN2040

Артикул: 5880206

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

20 Degree

BS Wiper edge length

1.524 mm

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN

COMPC Company code

IL - Ingersoll

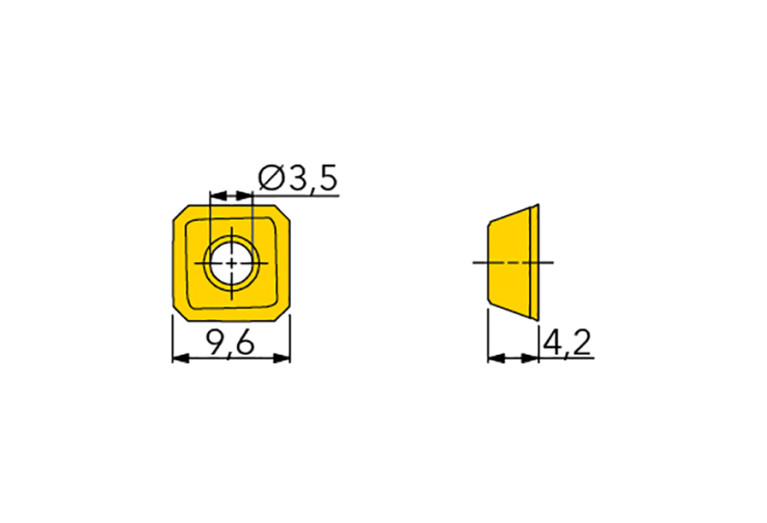

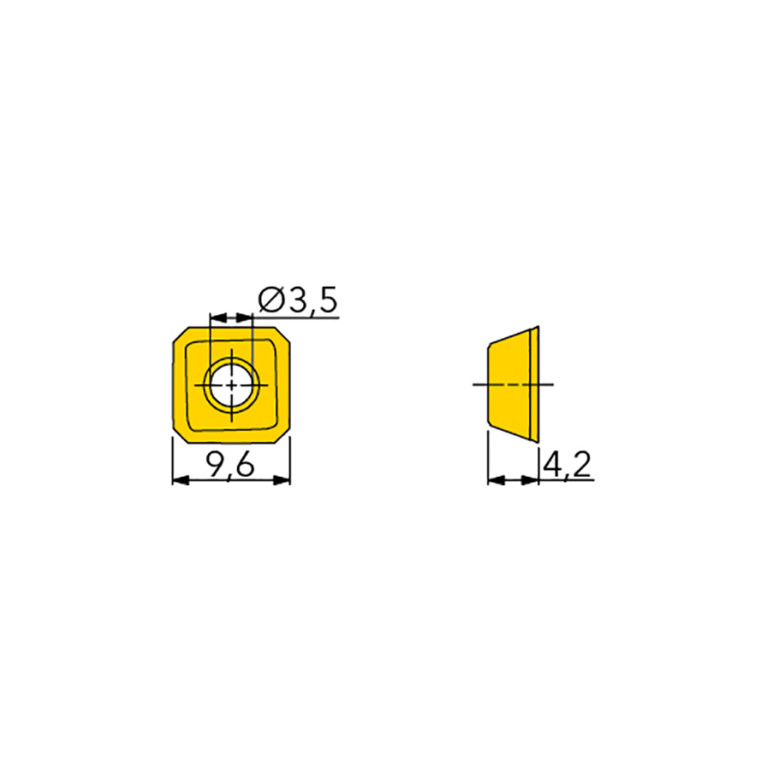

D1 Fixing hole diameter

3.55 mm

Delivery state

SF - Made to order

DIN

SE09T3 3N

EPSR Insert included angle

90 Degree

FamilyProducts

insert, four-edged, positive and sharp-edged geometry for non-ferrous materials

GRDMFG Grade manufacturers designation

IN2040

GRDPRIO Standard designation of the grade main application

P15-P35

IC Inscribed circle diameter

9.6 mm

ID Technical product number

5880206

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-02 - Square insert

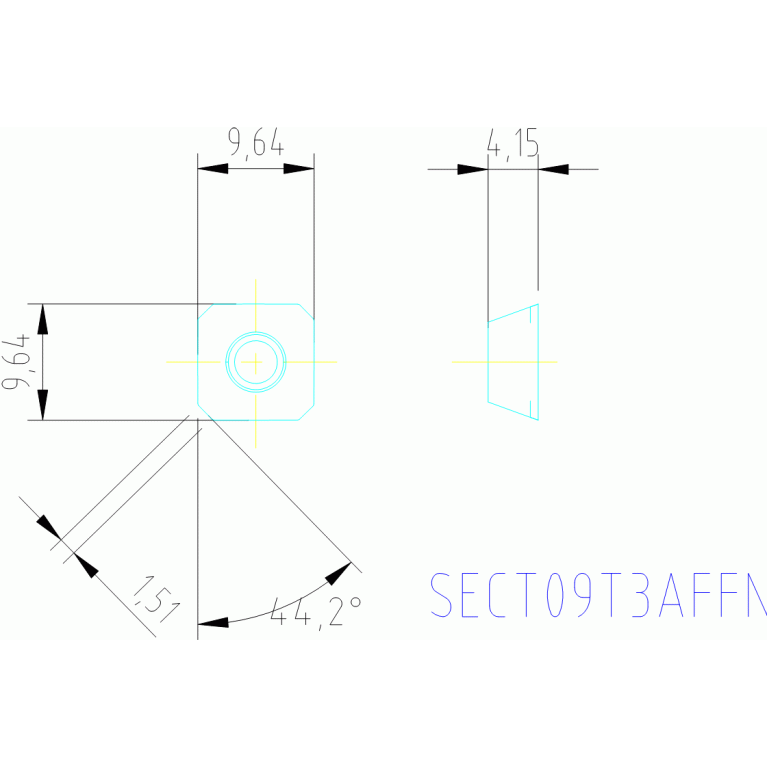

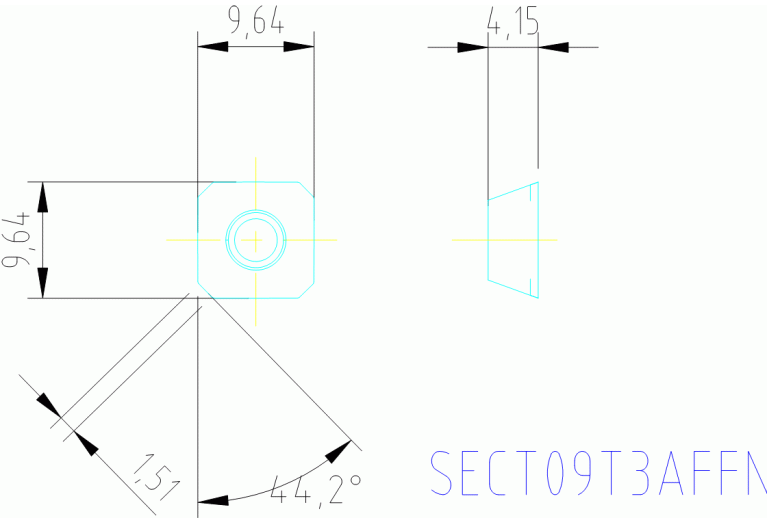

KRINS Cutting edge angle major

44.2 Degree

L Cutting edge length

6.877 mm

LE Cutting edge effective length

4.5 mm

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

SE09T3 3N

Name Identifying order number

SECT09T3AFFN IN2040

S Insert thickness

3.97 mm

S1 Insert thickness total

4.19 mm

STDDES Standard designation

SECT09T3AF

TCINS Tolerance class insert

Working process

FPL - Face milling,FPR - Profile milling
