CBMD Chip breaker manufacturers designation

-R58

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCP115

COMPC Company code

CE - Ceratizit

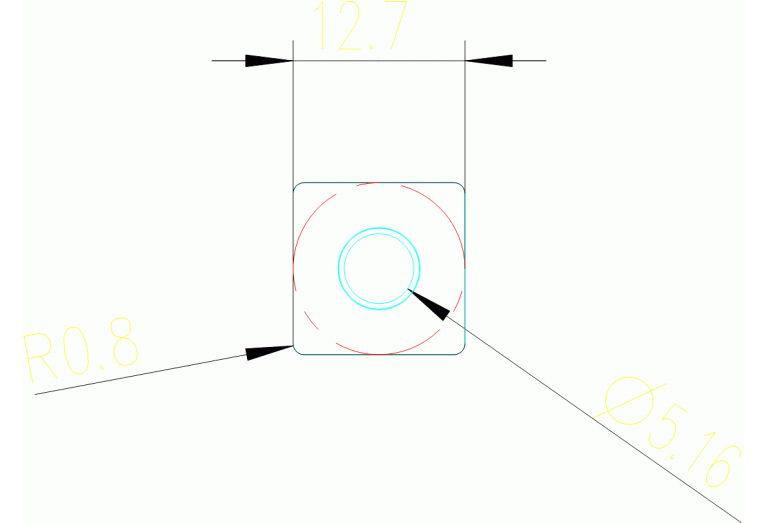

D1 Fixing hole diameter

5.16 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

12.7 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.7 mm

Name Identifying order number

76129318

RE Corner radius

0.8 mm

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
