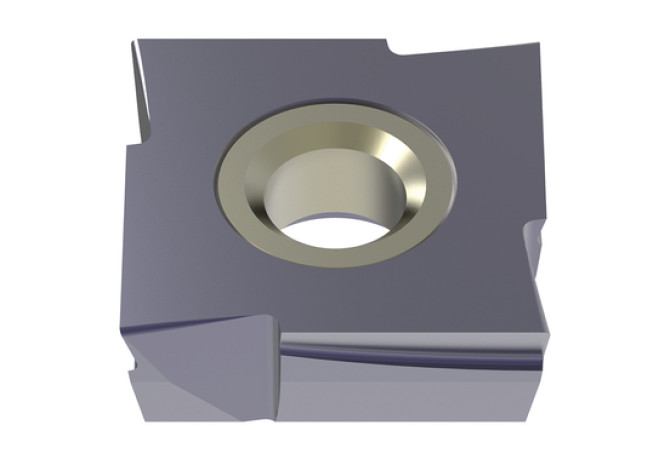

Главная Каталог продукции Toolunited 11 201-02 - Square insert 72668200

72668200

Артикул: 72668200

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6 Degree

CBMD Chip breaker manufacturers designation

-FR

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

WPX7615

COMPC Company code

CE - Ceratizit

EPSR Insert included angle

90 Degree

FamilyProducts

HM-DREHWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M20

GRD3RD Standard designation of the grade 3rd application

HC-K15

GRDPRIO Standard designation of the grade main application

HC-P15

IC Inscribed circle diameter

11.5 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

11.5 mm

Name Identifying order number

72668200

TCINS Tolerance class insert

Working process

No working processes available
