Главная Каталог продукции Toolunited 11 201-02 - Square insert 51118358

51118358

Артикул: 51118358

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6.5 Degree

CBMD Chip breaker manufacturers designation

-F10

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

CTWN215

COMPC Company code

CE - Ceratizit

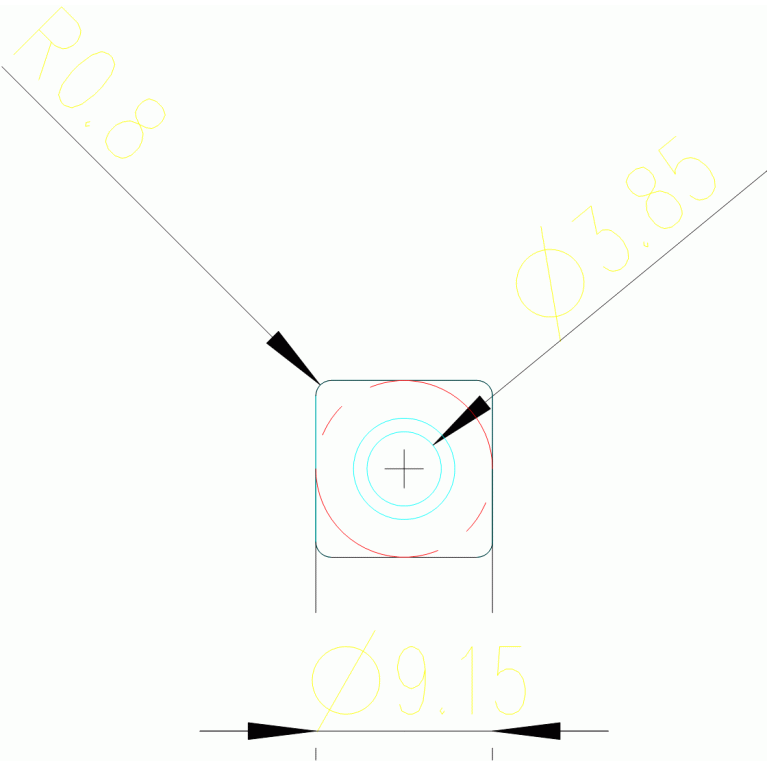

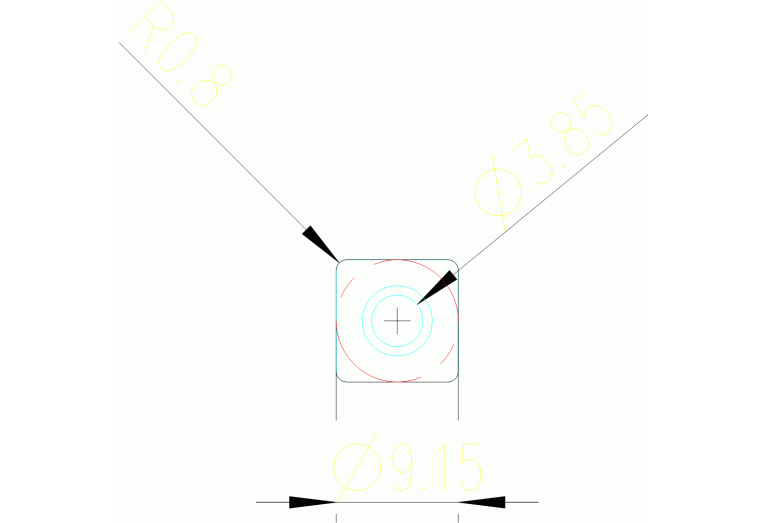

D1 Fixing hole diameter

3.85 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HW-K15

GRDPRIO Standard designation of the grade main application

HW-N15

IC Inscribed circle diameter

9.15 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.15 mm

Name Identifying order number

51118358

RE Corner radius

0.8 mm

S Insert thickness

3.7 mm

TCINS Tolerance class insert

Working process

No working processes available
