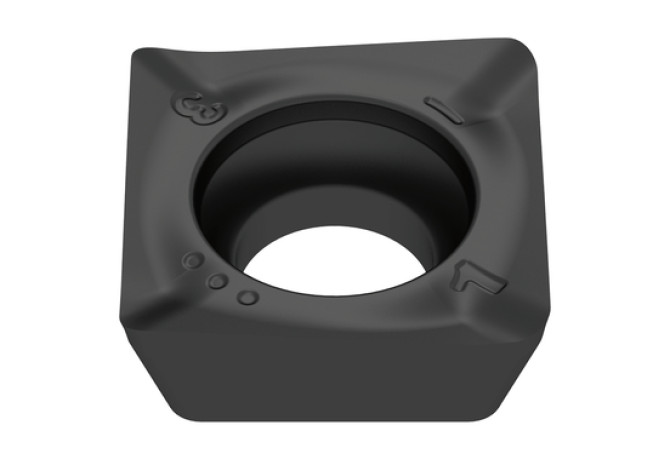

Главная Каталог продукции Toolunited 11 201-02 - Square insert 5111190801

5111190801

Артикул: 5111190801

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

2.5 mm

CBMD Chip breaker manufacturers designation

-F50

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCM245

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M45

GRDPRIO Standard designation of the grade main application

HC-P45

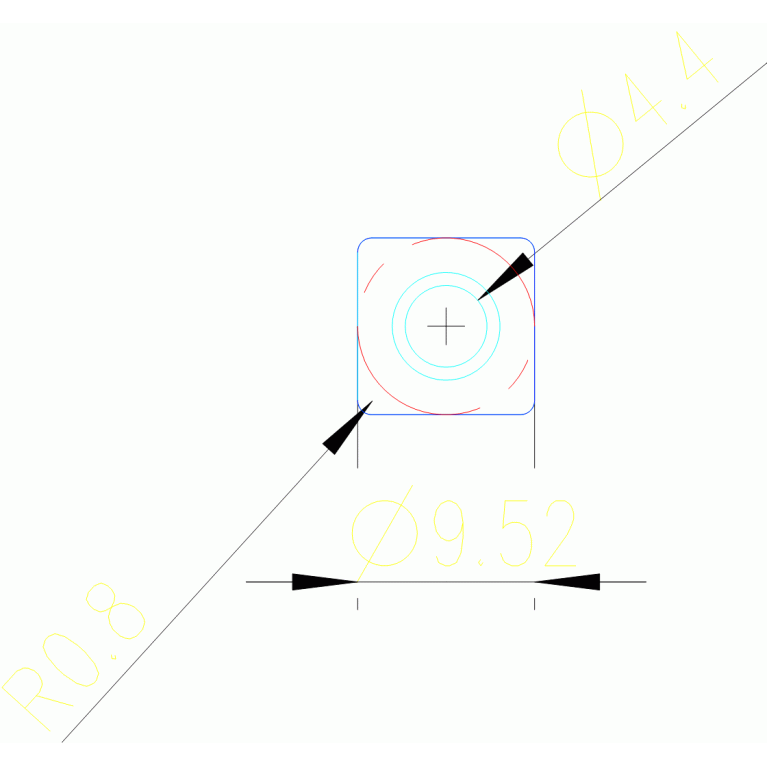

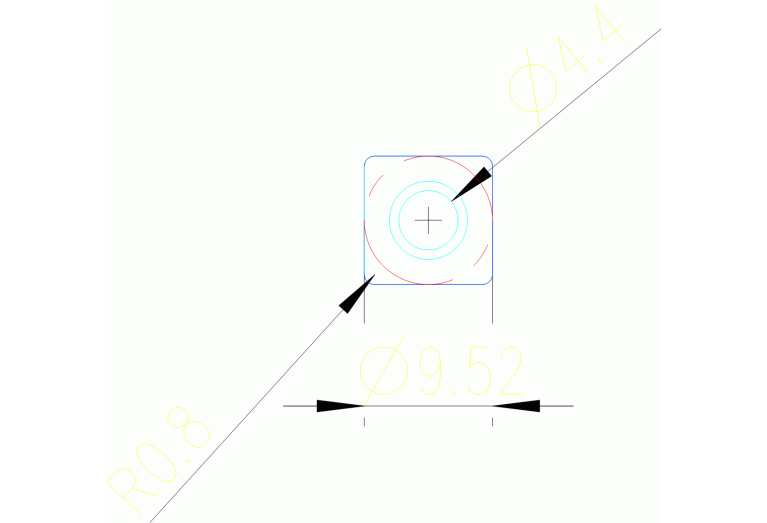

IC Inscribed circle diameter

9.52 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

Name Identifying order number

5111190801

RE Corner radius

0.8 mm

S Insert thickness

3.97 mm

TCINS Tolerance class insert

Working process

No working processes available
