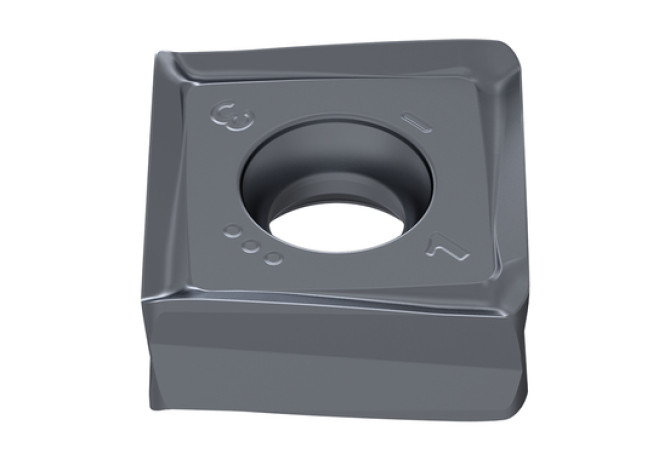

Главная Каталог продукции Toolunited 11 201-02 - Square insert 51102416

51102416

Артикул: 51102416

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

6.5 Degree

CBMD Chip breaker manufacturers designation

-F50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPM240

COMPC Company code

CE - Ceratizit

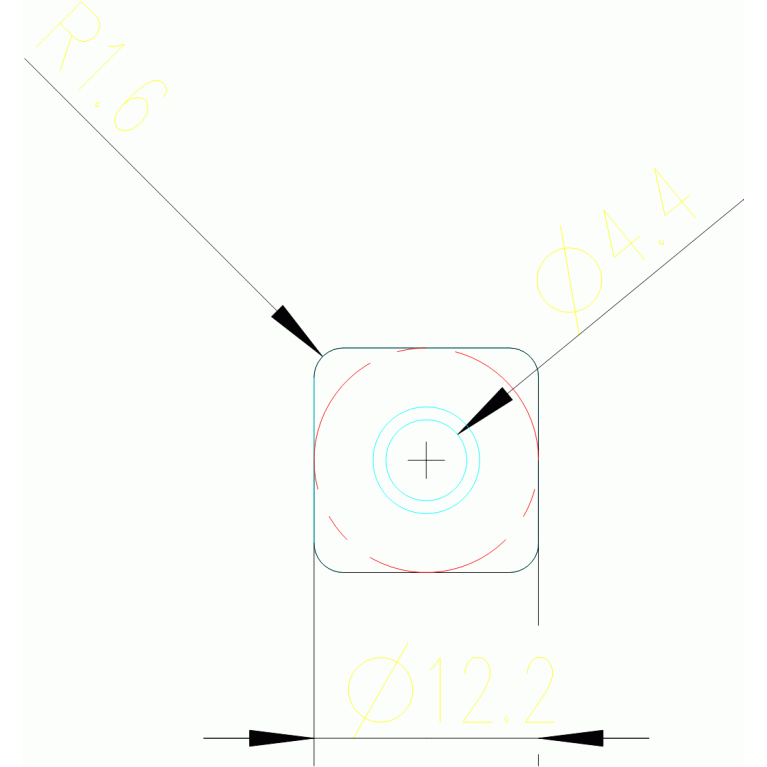

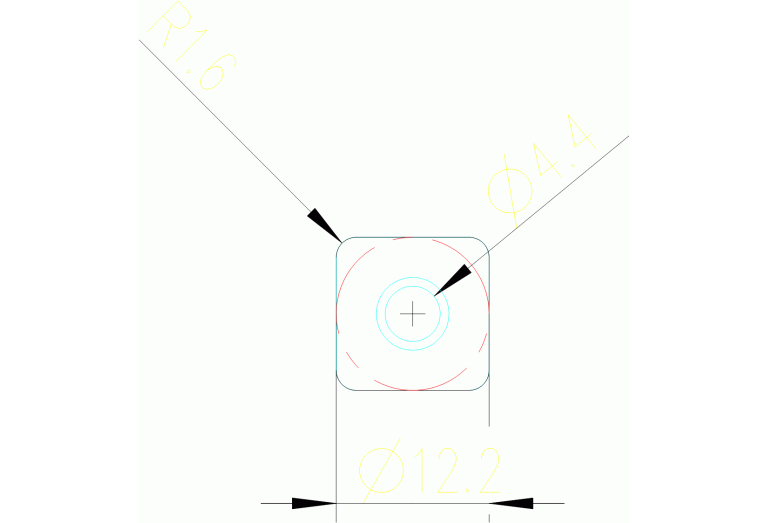

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-P40

GRDPRIO Standard designation of the grade main application

HC-M40

IC Inscribed circle diameter

12.2 mm

IH Insert hand

R - Right

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

12.2 mm

Name Identifying order number

51102416

RE Corner radius

1.6 mm

S Insert thickness

5 mm

TCINS Tolerance class insert

Working process

No working processes available
