51102408
51102408
Артикул:
51102408
В наличии
Характеристики
AN Clearance angle major
6.5 Degree
CBMD Chip breaker manufacturers designation
-F50
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
CTPM240
COMPC Company code
CE - Ceratizit

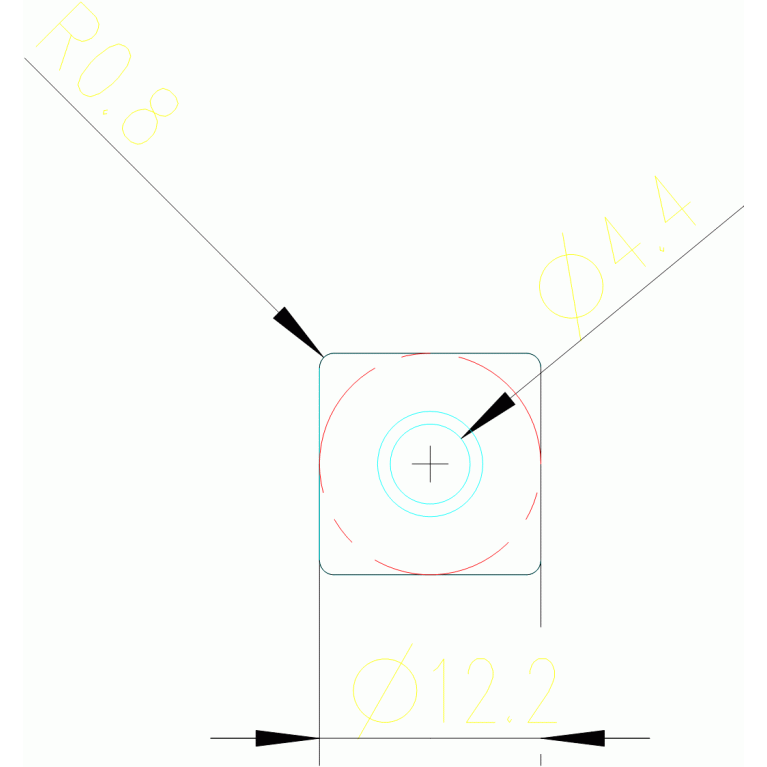

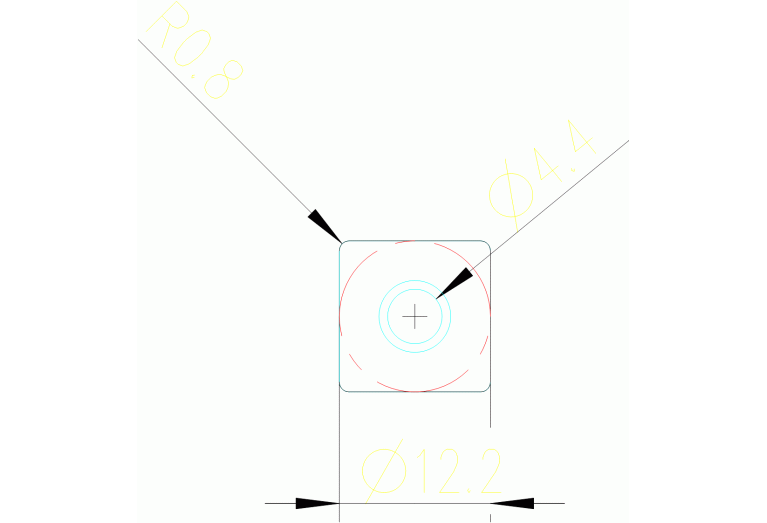

D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
90 Degree
FamilyProducts
HM-FRÄSWENDEPLATTE
GRD2ND Standard designation of the grade 2nd application
HC-P40
GRDPRIO Standard designation of the grade main application
HC-M40
IC Inscribed circle diameter
12.2 mm
IH Insert hand
R - Right
Interface codes
/
ISISO ISO property
1
ISYC Subclass

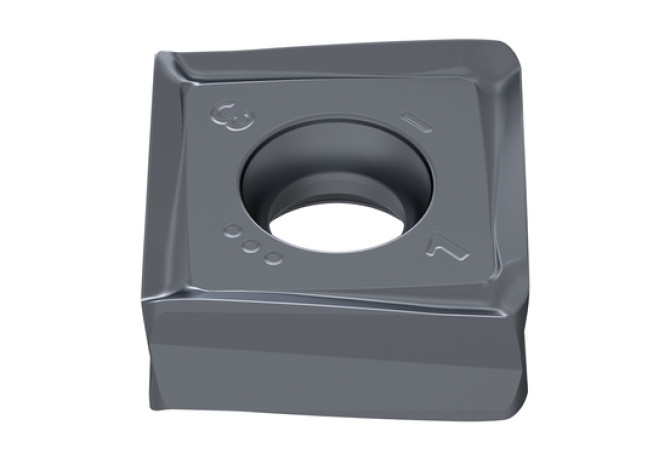

201-02 - Square insert
L Cutting edge length
12.2 mm
Name Identifying order number
51102408
RE Corner radius
0.8 mm
S Insert thickness
5 mm
TCINS Tolerance class insert
H
Working process
No working processes available
