Главная Каталог продукции Toolunited 11 201-02 - Square insert 51011120

51011120

Артикул: 51011120

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

BS Wiper edge length

1.68 mm

CBMD Chip breaker manufacturers designation

-29

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPP235

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

3.4 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDPRIO Standard designation of the grade main application

HC-P35

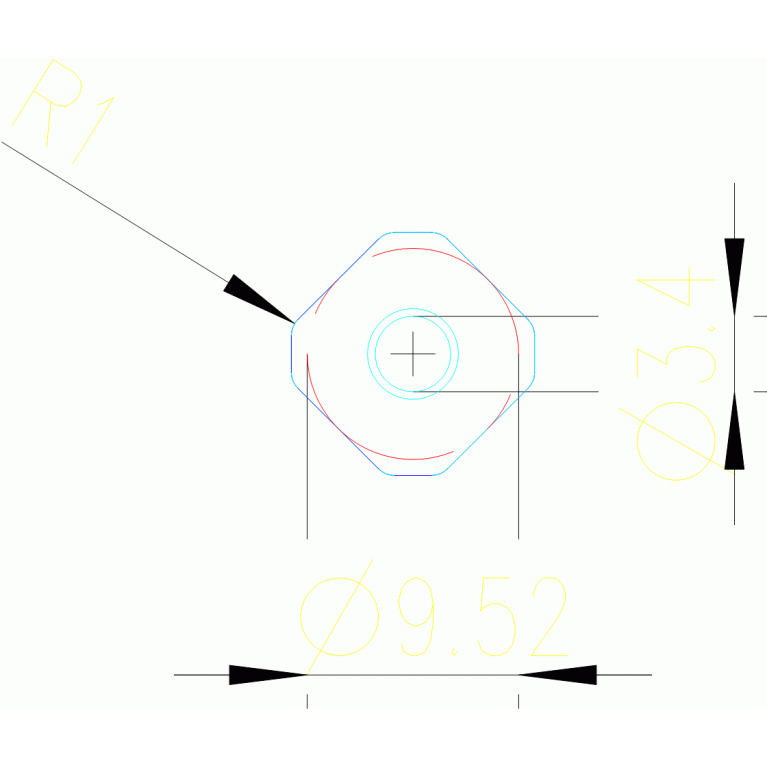

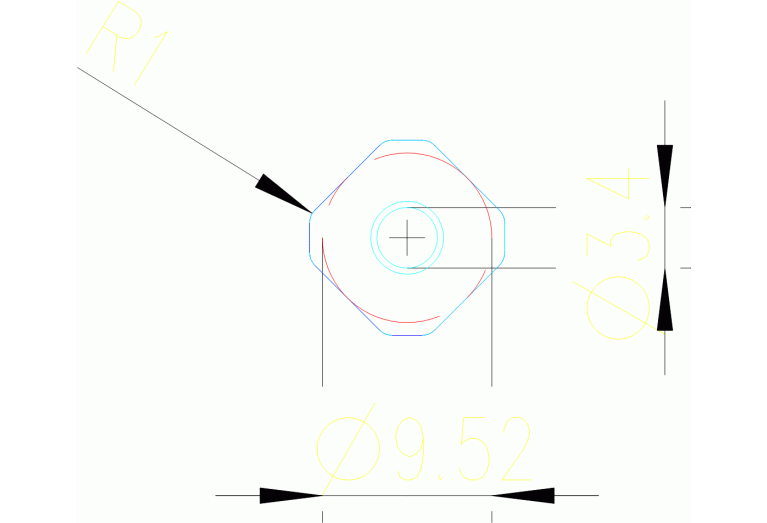

IC Inscribed circle diameter

9.52 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-02 - Square insert

L Cutting edge length

9.52 mm

Name Identifying order number

51011120

RE Corner radius

1 mm

S Insert thickness

3.18 mm

TCINS Tolerance class insert

Working process

No working processes available
