1082031301
1082031301
Артикул:
1082031301
В наличии
Характеристики
AN Clearance angle major
8 Degree
CBMD Chip breaker manufacturers designation
-01
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
BK8425
COMPC Company code
CE - Ceratizit

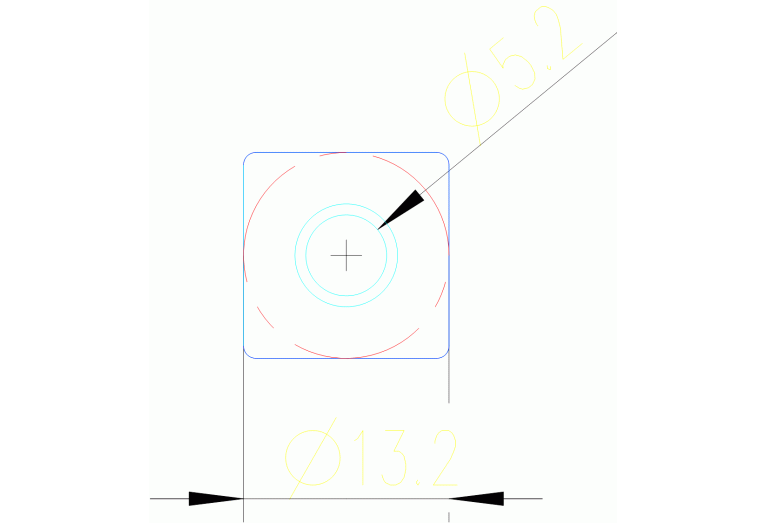

D1 Fixing hole diameter
5.2 mm
Delivery state valid from
10/1/2021
EPSR Insert included angle
90 Degree
FamilyProducts
HM-BOHRWENDEPLATTE
IC Inscribed circle diameter
13.2 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-02 - Square insert
L Cutting edge length
13.2 mm
Name Identifying order number
1082031301
RE Corner radius
0.8 mm
S Insert thickness
5.2 mm
TCINS Tolerance class insert
G
Working process
No working processes available
