1082000503

Артикул: 1082000503

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

8 Degree

CBMD Chip breaker manufacturers designation

-03

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

BK8430

COMPC Company code

CE - Ceratizit

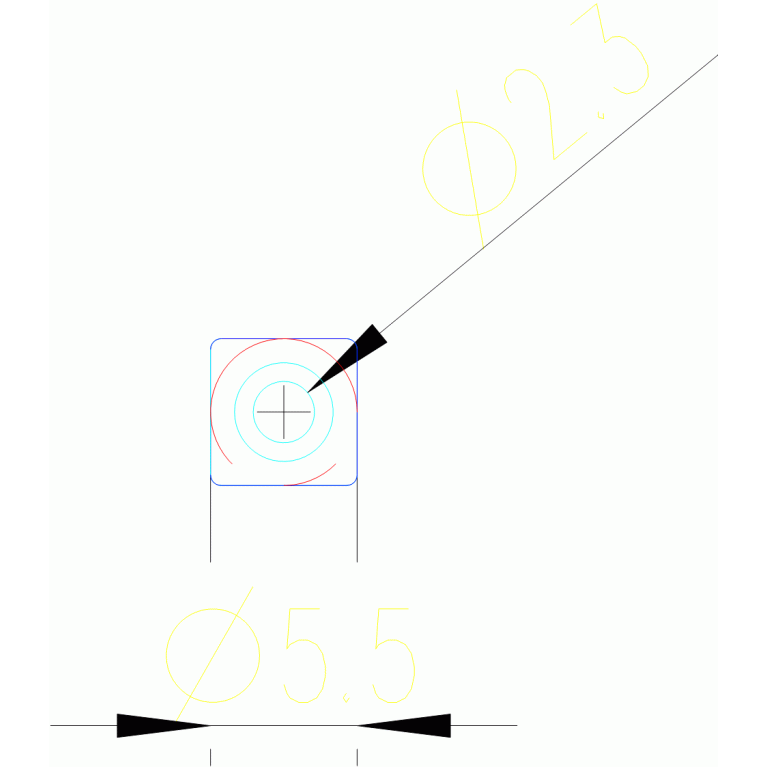

D1 Fixing hole diameter

2.3 mm

Delivery state valid from

10/1/2021

EPSR Insert included angle

90 Degree

FamilyProducts

HM-WENDESCHNEIDPLATTE

IC Inscribed circle diameter

5.5 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

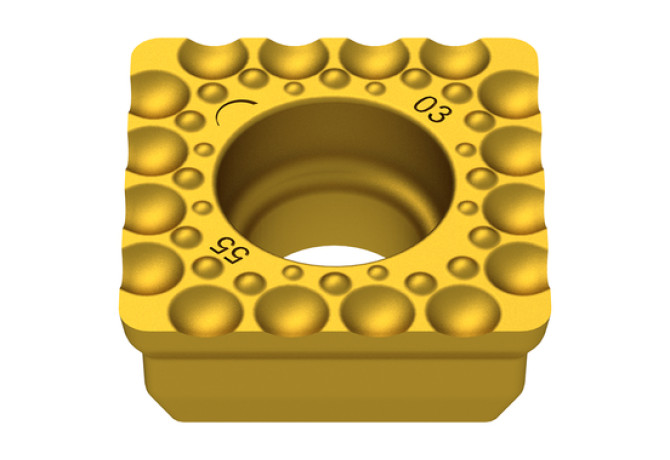

ISYC Subclass

201-02 - Square insert

L Cutting edge length

5.5 mm

Name Identifying order number

1082000503

RE Corner radius

0.4 mm

S Insert thickness

2.4 mm

TCINS Tolerance class insert

Working process

No working processes available
