Главная Каталог продукции Toolunited 11 308-02 - Shoulder milling cutter WWX400-080A07AR

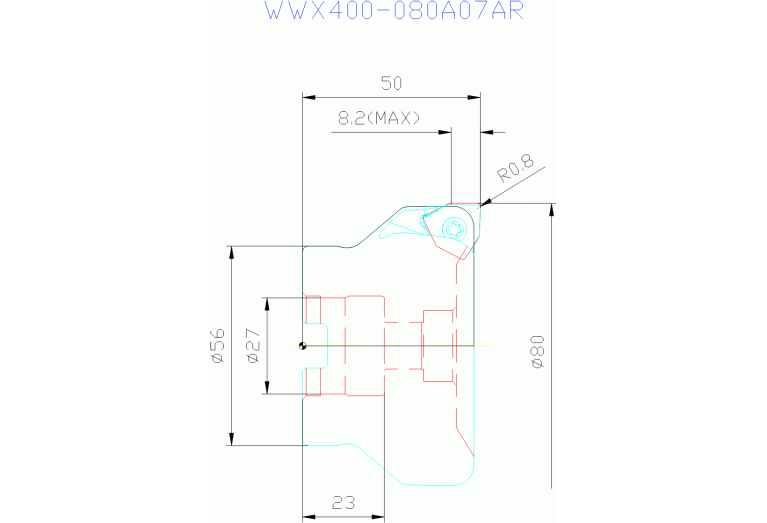

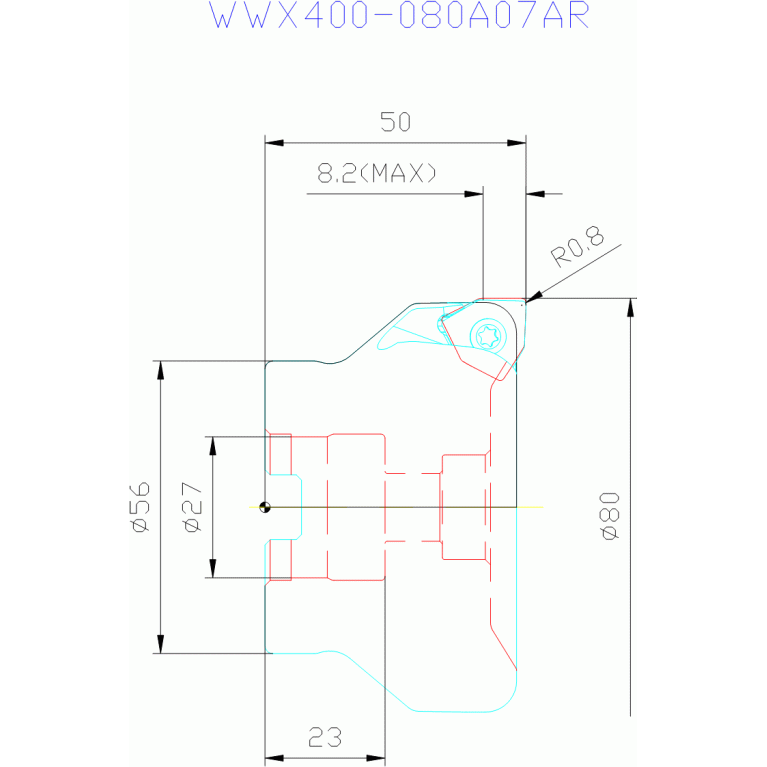

WWX400-080A07AR

WWX400-080A07AR WWX400-080A07AR WWX400-080A07AR WWX400-080A07AR

WWX400-080A07AR

Mitsubishi Materials
Артикул: 10611708
В наличии
В корзину
Описание
Характеристики
A1A Cutting edge angle major Pos. A
90 Degree
A2A Clearance angle major Pos. A
0 Degree
B1A Cutting edge length Pos. A
8.876 mm
B3A Inscribed circle diameter Pos. A
14 mm
BD Body diameter
56 mm
BLDA Tool style code Position A
7
C1A Insert thickness Pos. A
7 mm
CCONMS Connection count machine side
2
CDX Cutting depth maximum
8.2 mm
CICT Cutting item count
7
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
MI - Mitsubishi Materials
CXSC Coolant exit style code
0 - Without coolant exit
D1A Corner radius Pos. A
0.4 mm
DC Cutting diameter
80 mm
DCCB Counterbore diameter connection bore
20 mm
DCP Data chip provision
0 - Without data chip
Delivery state valid from
4/1/2022
DIN
FDA02702200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
7

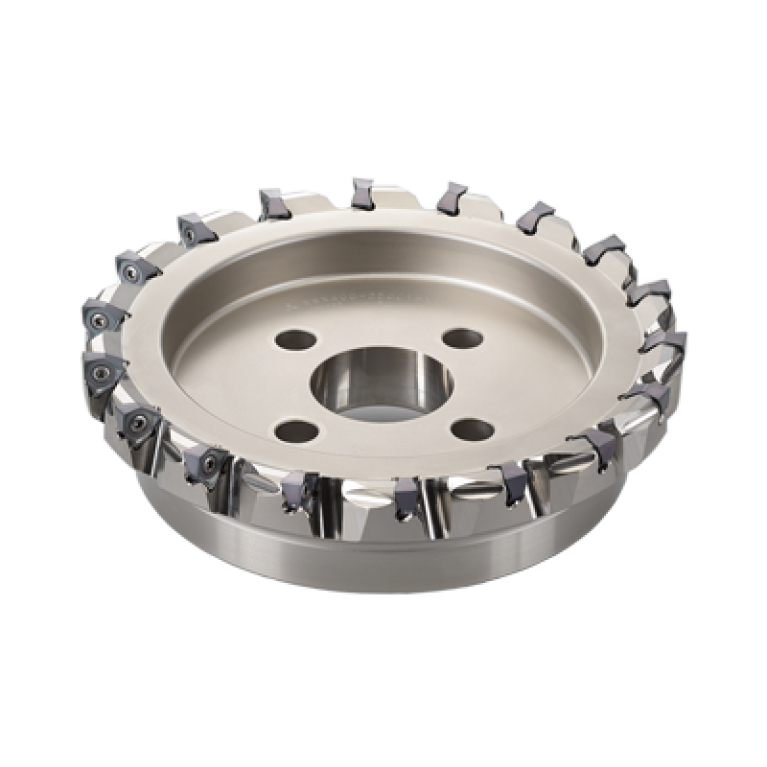

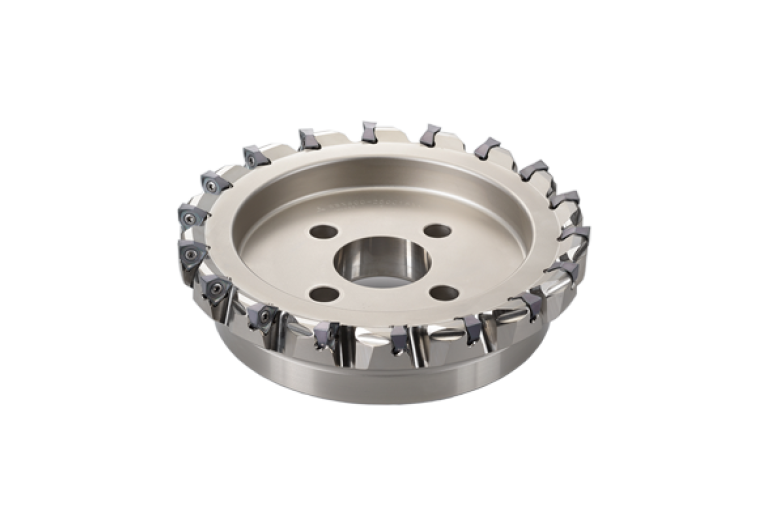

FamilyProducts
face mills
GAMF Rake angle radial
-9.2 Degree
GAMP Rake angle axial
-6 Degree
HAND Cutting direction
R - Right
ID Technical product number
10611708
Interface codes
J6 / J61
ISISO A Indicator for ISO cutting plate Pos.A
0
ISO
FDA22G2700$$$$
ISYC Subclass
308-02 - Shoulder milling cutter
KAPR Tool cutting edge angle
90 Degree

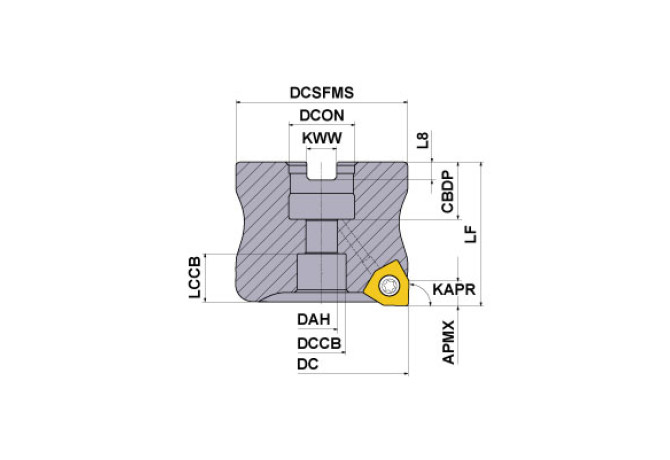

LCCB Counterbore depth connection bore
14.2 mm
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03 ISO
FDA22G2700$$$$
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
MILTTY Mill tool type ISO
A - Face milling cutter shoulder cutter peripheral
Name Identifying order number
WWX400-080A07AR
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
0.9 kg
ZEFF Face effective cutting edge count
7
ZEFP Peripheral effective cutting edge count
7
