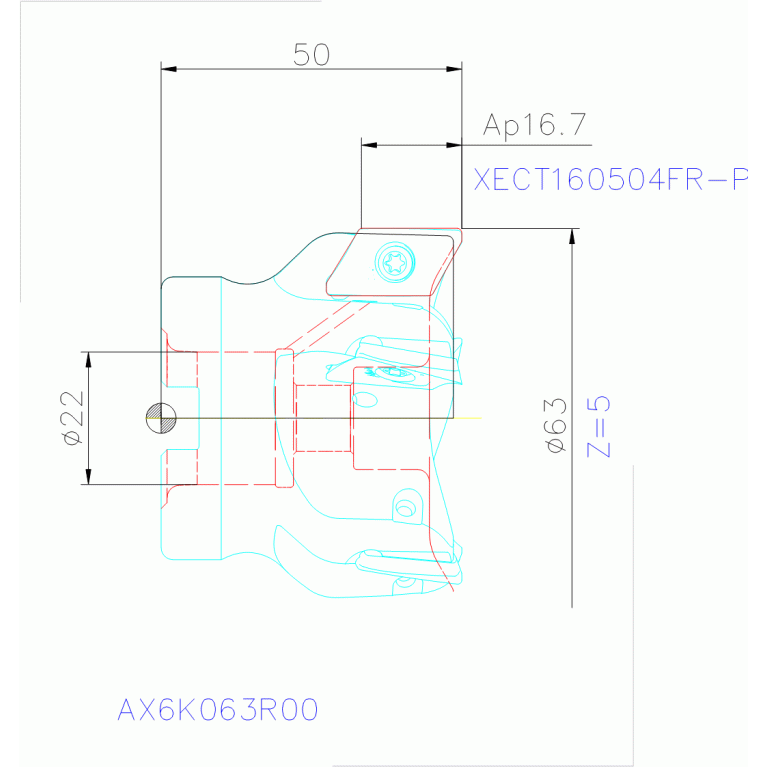

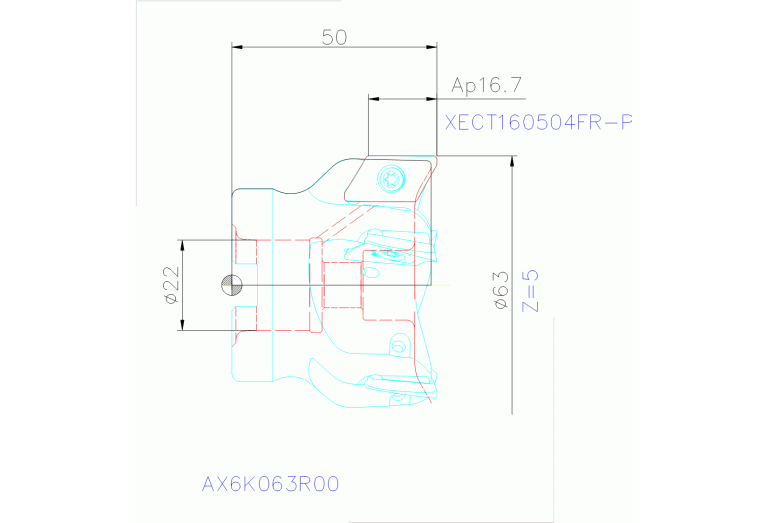

AX6K063R00

Артикул: 3031268

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

16 mm

CICT Cutting item count

CNSC Coolant entry style code

1 - With Coolant entry, axial concentric

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

1 - With Coolant exit, axial concentric

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state

NL - Discontinued

DHUB Hub diameter

47 mm

DIN

FDA02202210

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

Shoulder-Type Face Mill AX6K

HAND Cutting direction

R - Right

ID Technical product number

3031268

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-02 - Shoulder milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

1 Metric with coolant

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202210

Name Identifying order number

AX6K063R00

OAL Overall length

50 mm

RMPX Ramping angle maximum

7 Degree

Working process

No working processes available

WT Weight of item

0.54 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
