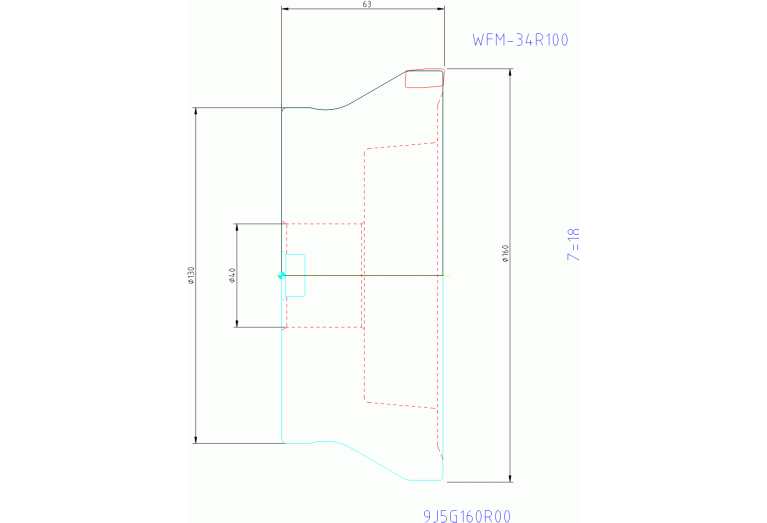

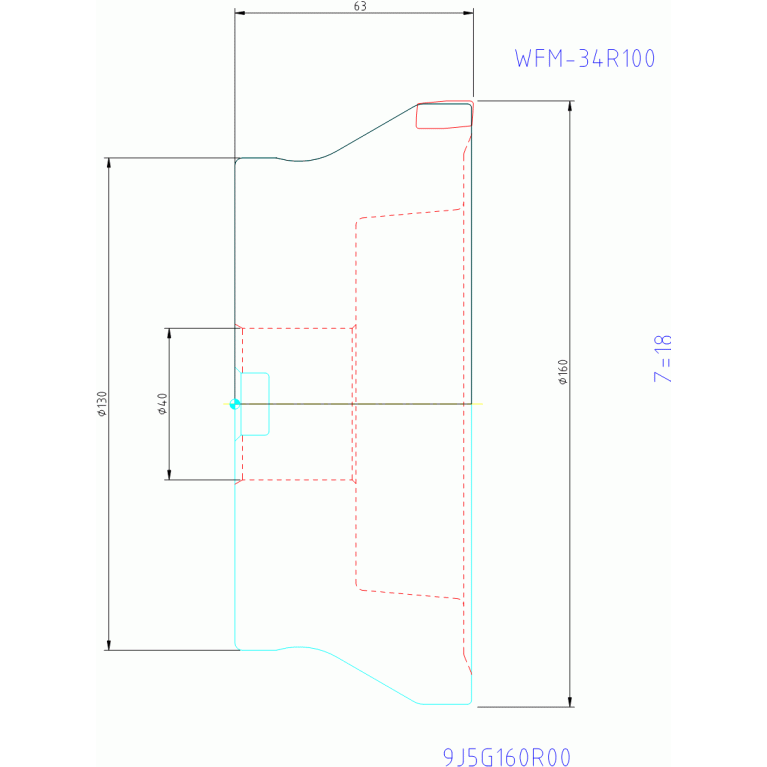

9J5G160R00
9J5G160R00
Артикул:
3030328
В наличии
Характеристики
BLDA Tool style code Position A
7
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7 mm
CICT Cutting item count
18
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
160 mm
DCP Data chip provision
0 - Without data chip
Delivery state
NL - Discontinued
DHUB Hub diameter
110 mm
DIN
SPK04000100
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
18
FamilyProducts

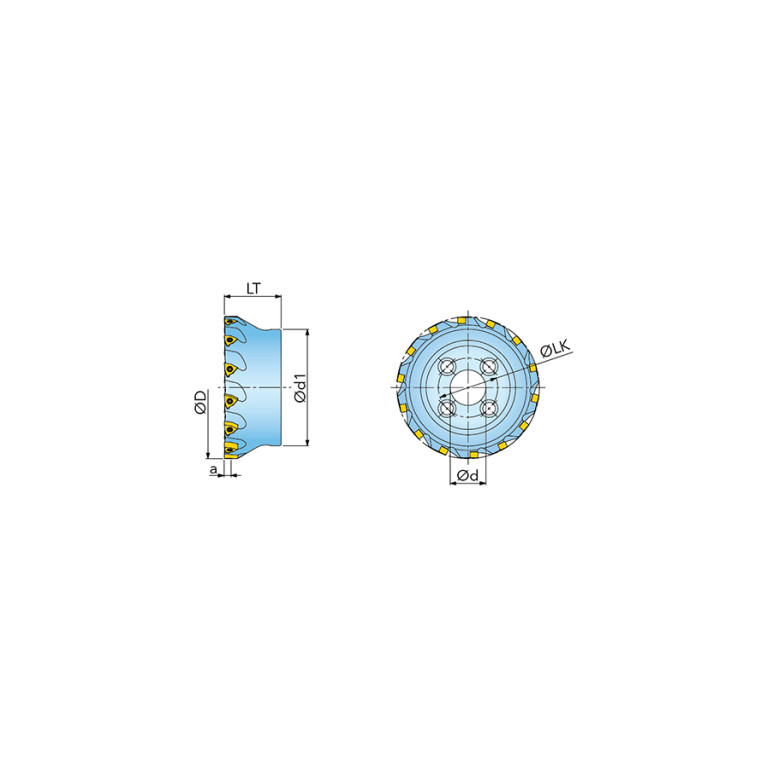

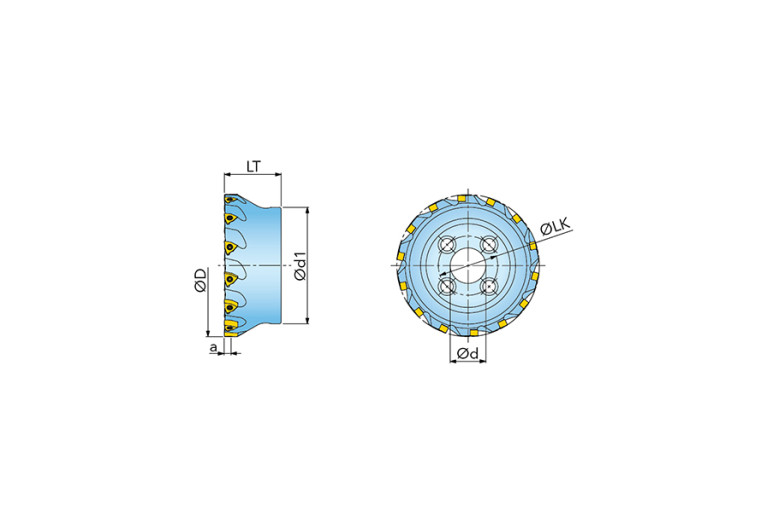

Shoulder-Type Face Mill 9J G
HAND Cutting direction
R - Right
ID Technical product number
3030328
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
LOC-03 CCFMS Connection code form
01
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
SPK Spindle nose mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0400
LOC-03 DCONMS Diameter
40 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
SPK04000100
Name Identifying order number
9J5G160R00
OAL Overall length
63 mm
Working process
No working processes available
WT Weight of item
4.9 kg
ZEFF Face effective cutting edge count
18
ZEFP Peripheral effective cutting edge count
18
