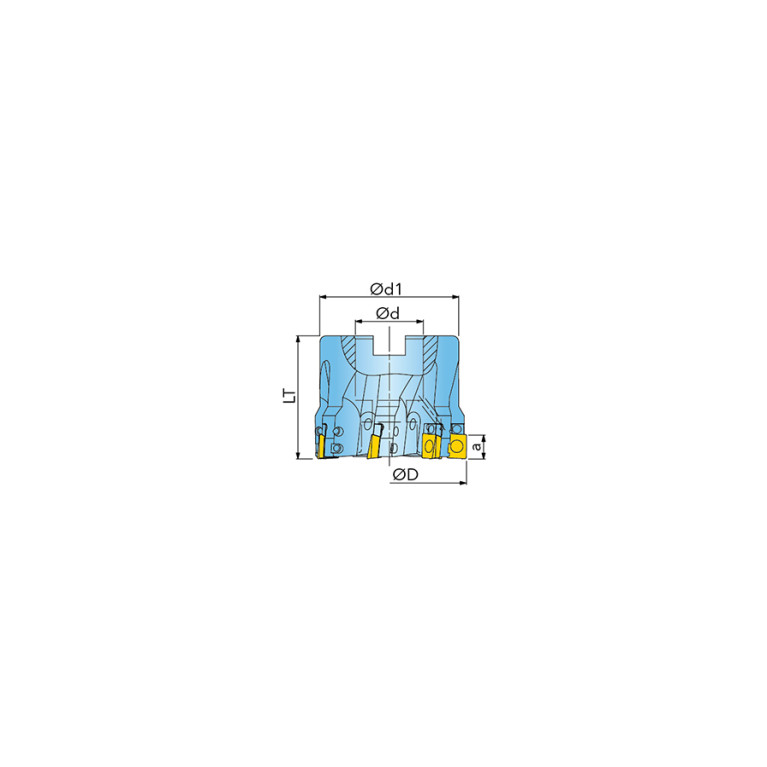

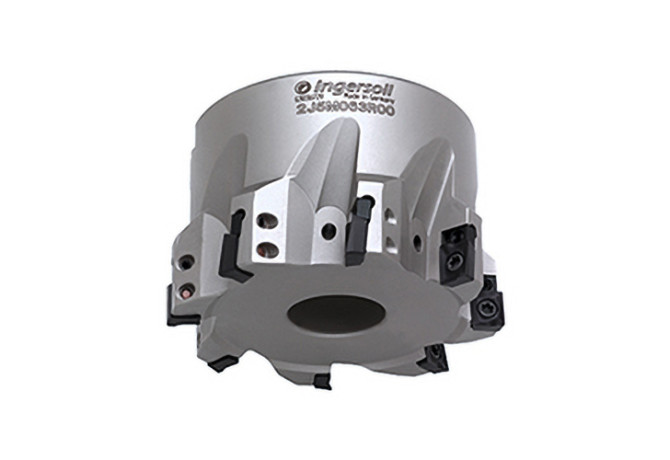

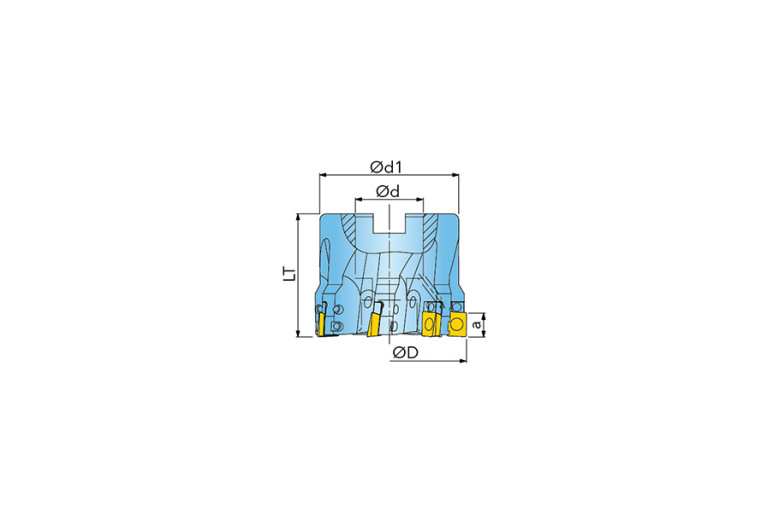

Главная Каталог продукции Toolunited 11 308-02 - Shoulder milling cutter 2J5M100R00

2J5M100R00

2J5M100R00 2J5M100R00 2J5M100R00 2J5M100R00

2J5M100R00

Ingersoll
Артикул: 3080331
В наличии
В корзину
Описание
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7.5 mm
CICT Cutting item count
12
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric

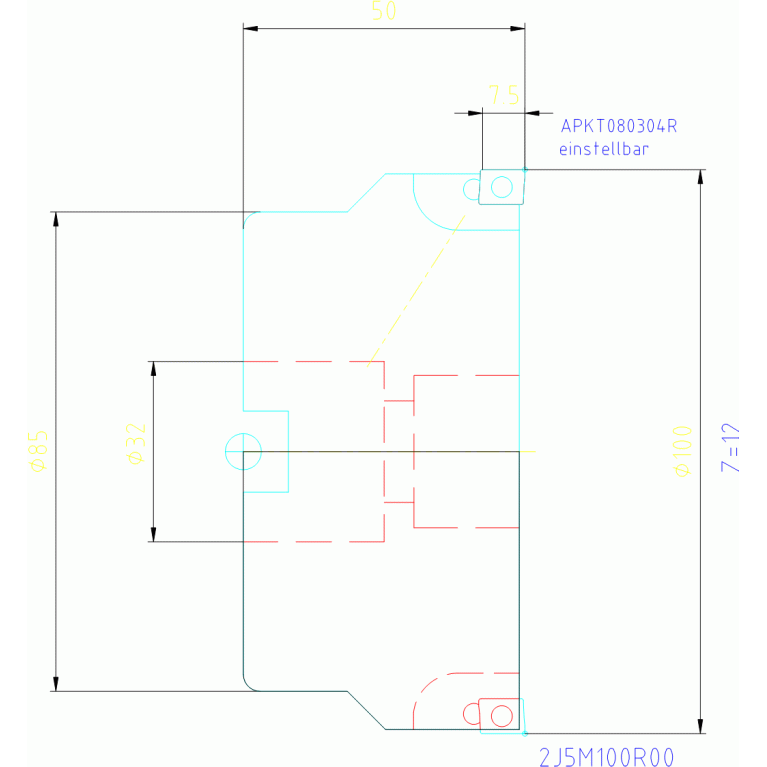

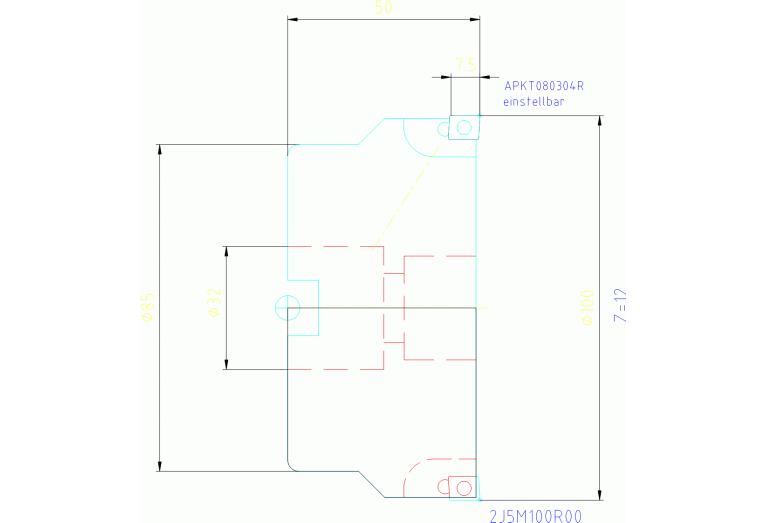

DC Cutting diameter
100 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
85 mm
DIN
FDA03202210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
12
FamilyProducts
Adjustable Shoulder-Type Face Mill 2J5M
HAND Cutting direction
R - Right
ID Technical product number
3080331
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0320
LOC-03 DCONMS Diameter
32 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA03202210
Name Identifying order number
2J5M100R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
2.02 kg
ZEFF Face effective cutting edge count
12
ZEFP Peripheral effective cutting edge count
12
