2J1M080R00
2J1M080R00
Артикул:
3080039
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7.5 mm
CICT Cutting item count
10
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
80 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
70 mm
DIN
FDA02702200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
10
FamilyProducts

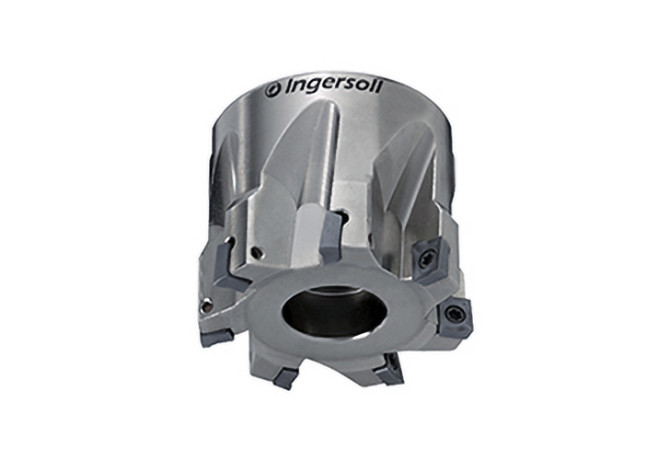

Shoulder-Type Face Mill 2J1M
HAND Cutting direction
R - Right
ID Technical product number
3080039
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0270
LOC-03 DCONMS Diameter
27 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA02702200
Name Identifying order number
2J1M080R00
OAL Overall length
50 mm
Working process
No working processes available
WT Weight of item
1.23 kg
ZEFF Face effective cutting edge count
10
ZEFP Peripheral effective cutting edge count
10
