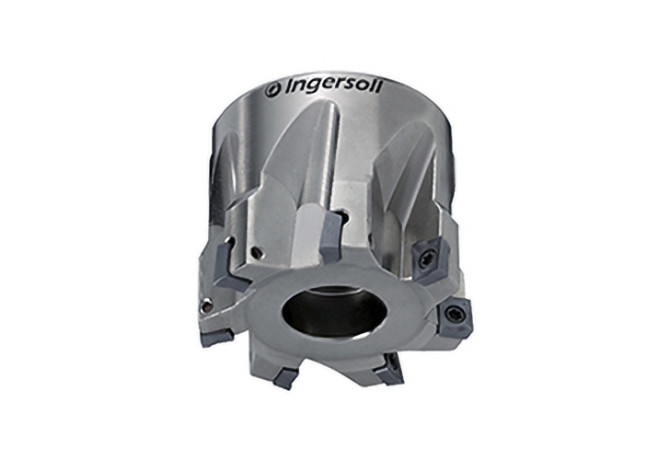

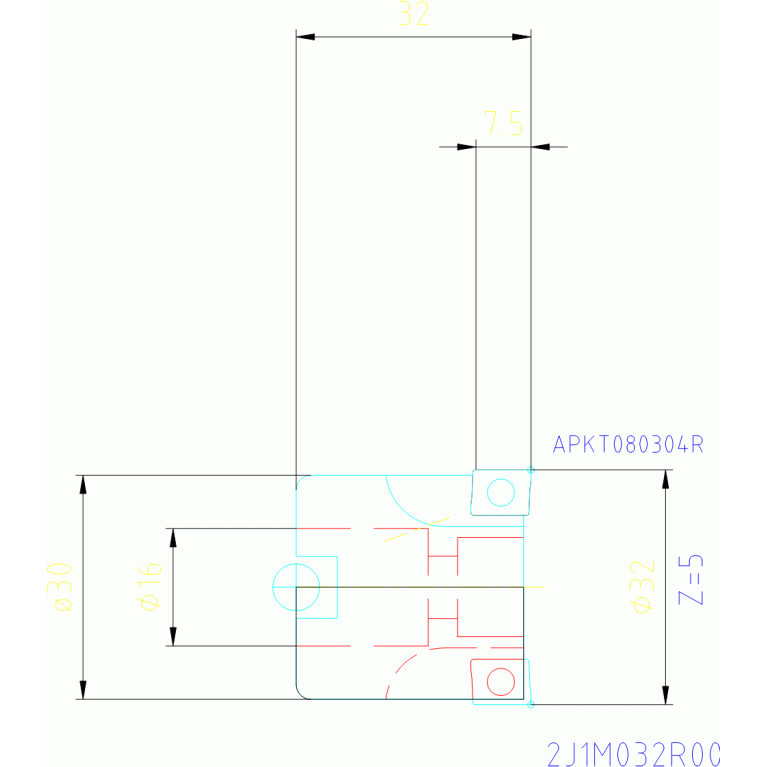

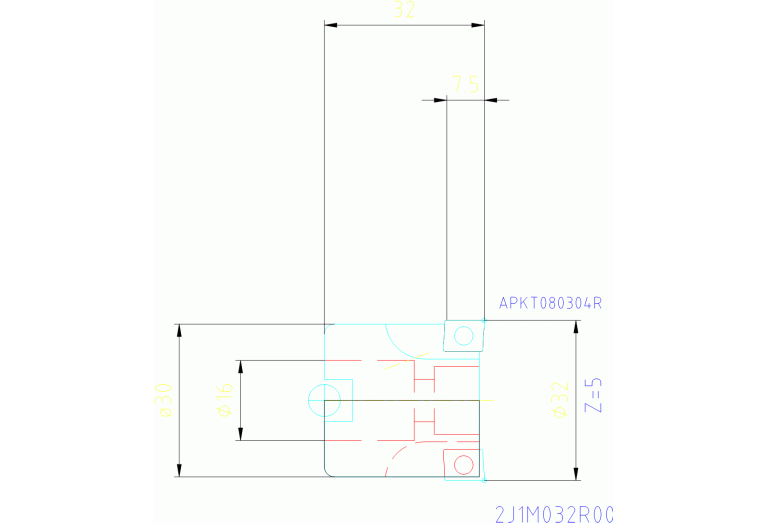

2J1M032R00
2J1M032R00
Артикул:
3080035
В наличии
Характеристики
CCONMS Connection count machine side
1
CDX Cutting depth maximum
7.5 mm
CICT Cutting item count
5
CNSC Coolant entry style code
0 - Without coolant entry
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
0 - Without coolant exit
DC Cutting diameter
32 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
30 mm
DIN
FDA01602200
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
5
FamilyProducts
Shoulder-Type Face Mill 2J1M
HAND Cutting direction
R - Right
ID Technical product number
3080035
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01602200
Name Identifying order number
2J1M032R00
OAL Overall length
32 mm
Working process
No working processes available
WT Weight of item
0.1 kg
ZEFF Face effective cutting edge count
5
ZEFP Peripheral effective cutting edge count
5
