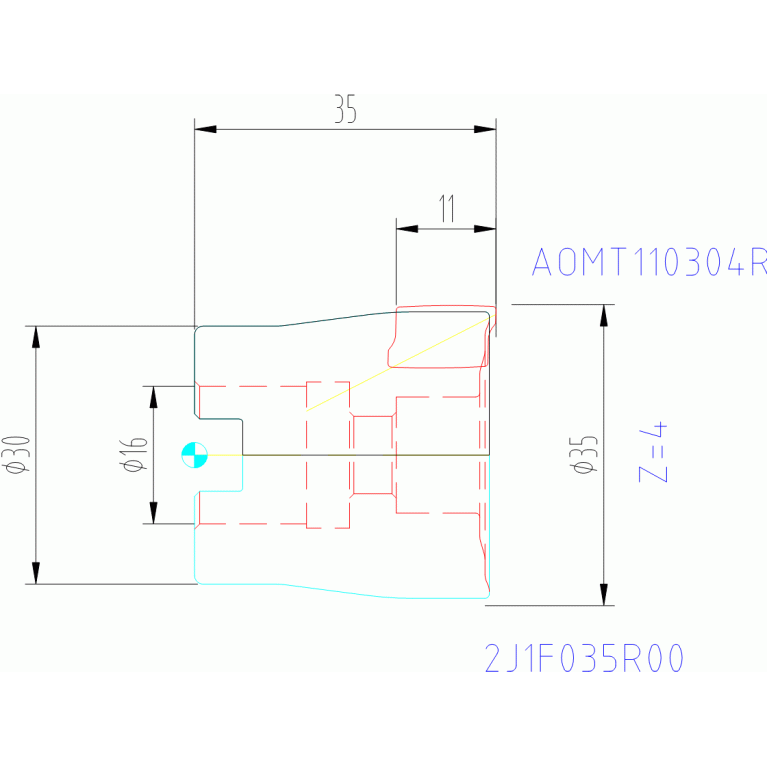

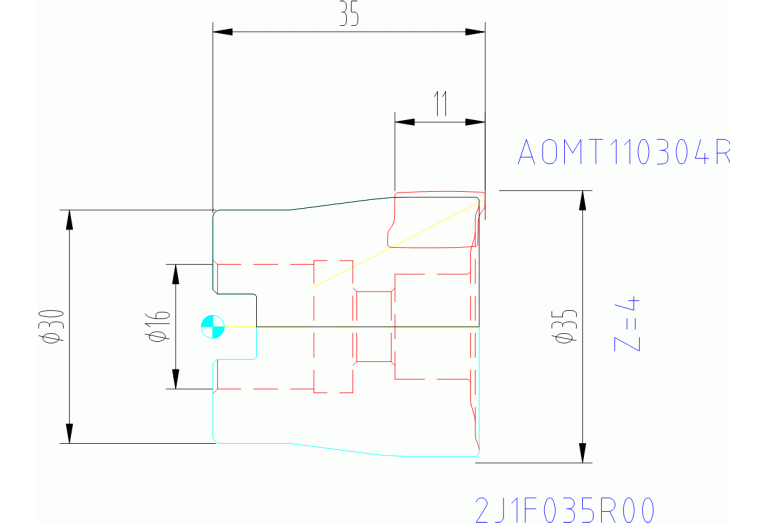

Главная Каталог продукции Toolunited 11 308-02 - Shoulder milling cutter 2J1F035R00

2J1F035R00

2J1F035R00 2J1F035R00 2J1F035R00 2J1F035R00

2J1F035R00

Ingersoll
Артикул: 3080417
В наличии
В корзину
Описание
Характеристики
BLDA Tool style code Position A
5
CCONMS Connection count machine side
1
CDX Cutting depth maximum
11 mm
CICT Cutting item count
4
CNSC Coolant entry style code
1 - With Coolant entry, axial concentric
COMPC Company code
IL - Ingersoll
CXSC Coolant exit style code
1 - With Coolant exit, axial concentric
DC Cutting diameter
35 mm
DCP Data chip provision
0 - Without data chip
Delivery state
LH - Stocked
DHUB Hub diameter
30 mm
DIN
FDA01602210
F23 Number of mounting layers
1
F24 Cutting item count per mounting layer
4
FamilyProducts
Shoulder-Type Face Mill 2J1F
HAND Cutting direction
R - Right
ID Technical product number
3080417
Interface codes
J6 /
ISISO A Indicator for ISO cutting plate Pos.A
0
ISYC Subclass
308-02 - Shoulder milling cutter
LOC-03 CCFMS Connection code form
22
LOC-03 CCSMS Connection code style
0 Hole in machine direction or shaft in workpiece direction
LOC-03 CCTMS Connection code type
FDA Milling arbor mounting
LOC-03 CCUMS Connection code unit base
1 Metric with coolant
LOC-03 CZCMS Connection size code
0160
LOC-03 DCONMS Diameter
16 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
FDA01602210
Name Identifying order number
2J1F035R00
OAL Overall length
35 mm
RMPX Ramping angle maximum
3.3 Degree
Working process
No working processes available
WT Weight of item
0.12 kg
ZEFF Face effective cutting edge count
4
ZEFP Peripheral effective cutting edge count
4
