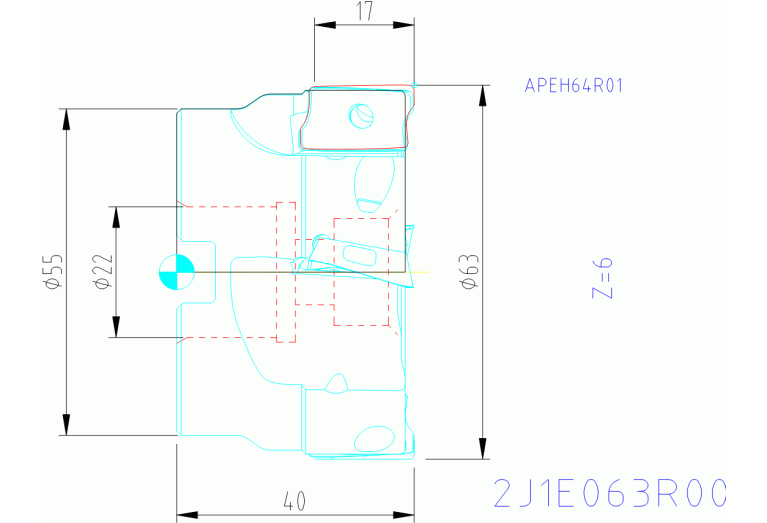

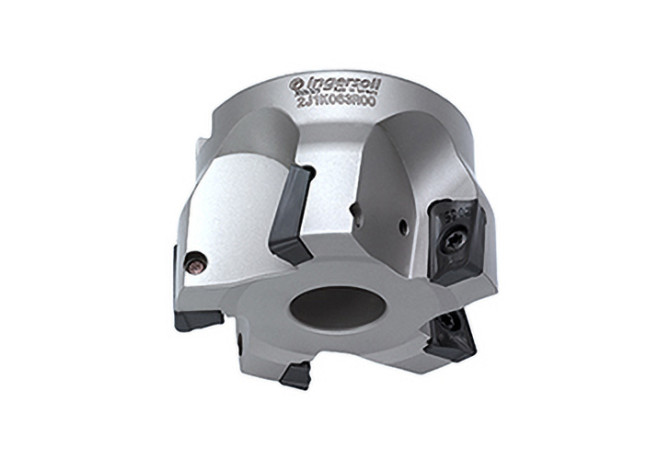

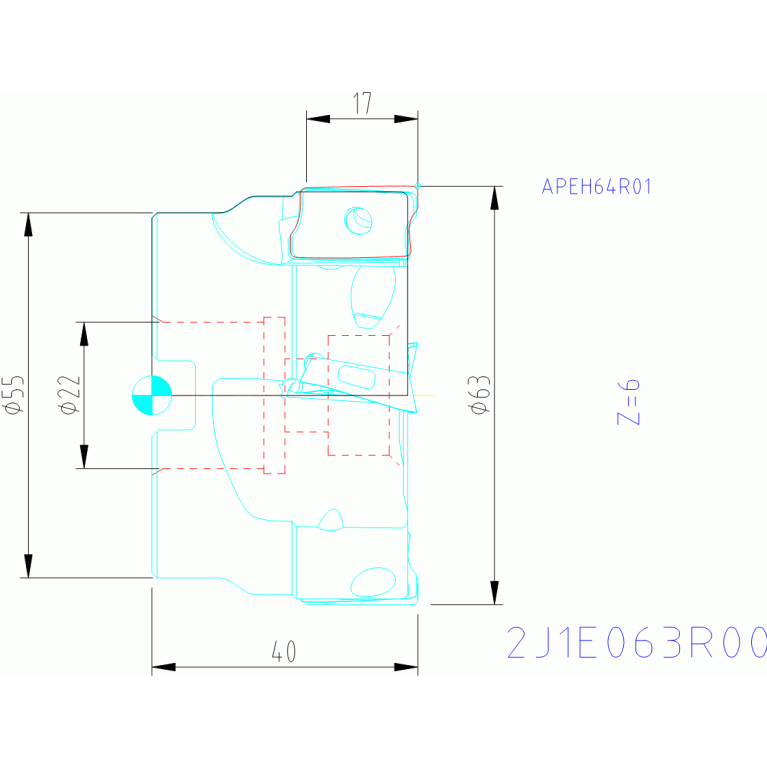

Главная Каталог продукции Toolunited 11 308-02 - Shoulder milling cutter 2J1E063R00

2J1E063R00

Артикул: 3040039

В наличии

В корзину

Описание

Характеристики

CCONMS Connection count machine side

CDX Cutting depth maximum

17 mm

CICT Cutting item count

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

63 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LH - Stocked

DHUB Hub diameter

55 mm

DIN

FDA02202200

F23 Number of mounting layers

F24 Cutting item count per mounting layer

FamilyProducts

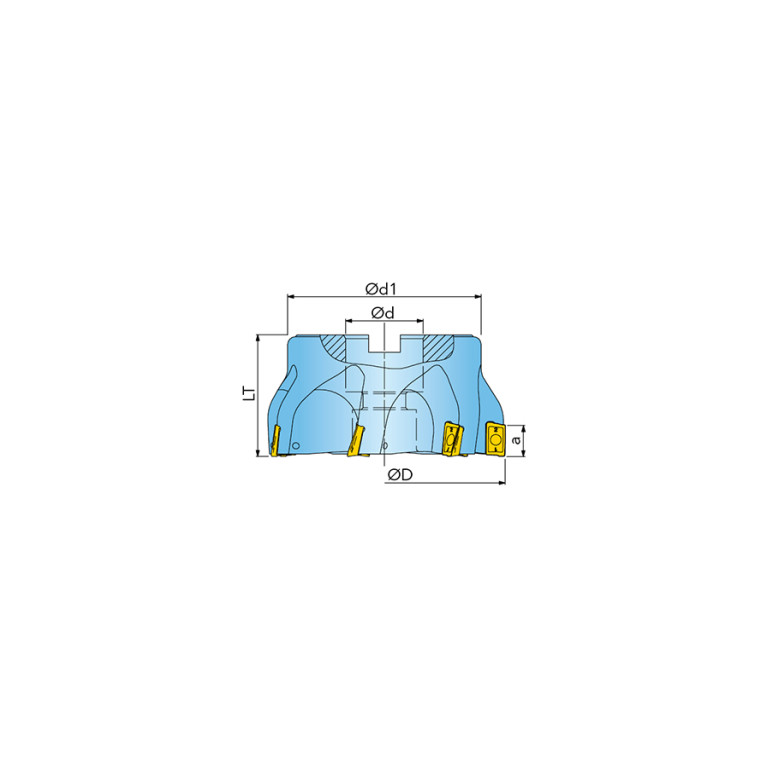

Shoulder-Type Face Mill 2J1E

HAND Cutting direction

R - Right

ID Technical product number

3040039

Interface codes

J6 /

ISISO A Indicator for ISO cutting plate Pos.A

ISYC Subclass

308-02 - Shoulder milling cutter

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

0 Hole in machine direction or shaft in workpiece direction

LOC-03 CCTMS Connection code type

FDA Milling arbor mounting

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0220

LOC-03 DCONMS Diameter

22 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

FDA02202200

Name Identifying order number

2J1E063R00

OAL Overall length

40 mm

RMPX Ramping angle maximum

2.6 Degree

Working process

No working processes available

WT Weight of item

0.52 kg

ZEFF Face effective cutting edge count

ZEFP Peripheral effective cutting edge count
