Главная Каталог продукции Toolunited 11 201-10 - Round insert RPLT10T3M0TN-HR1 IN4035

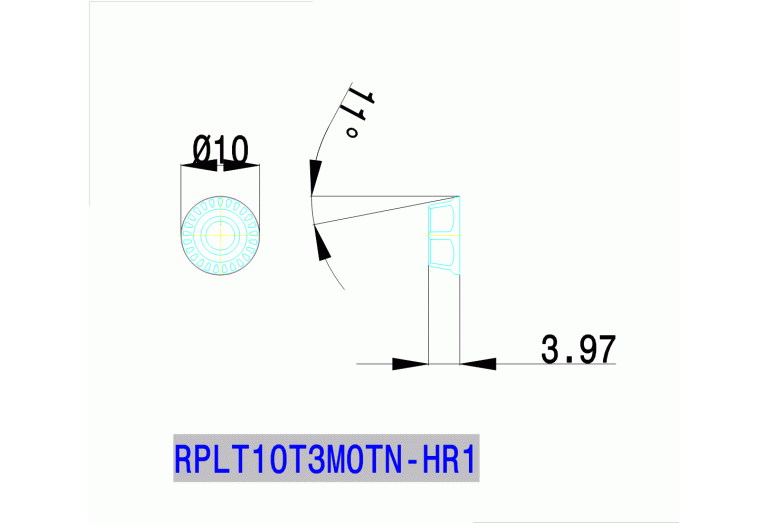

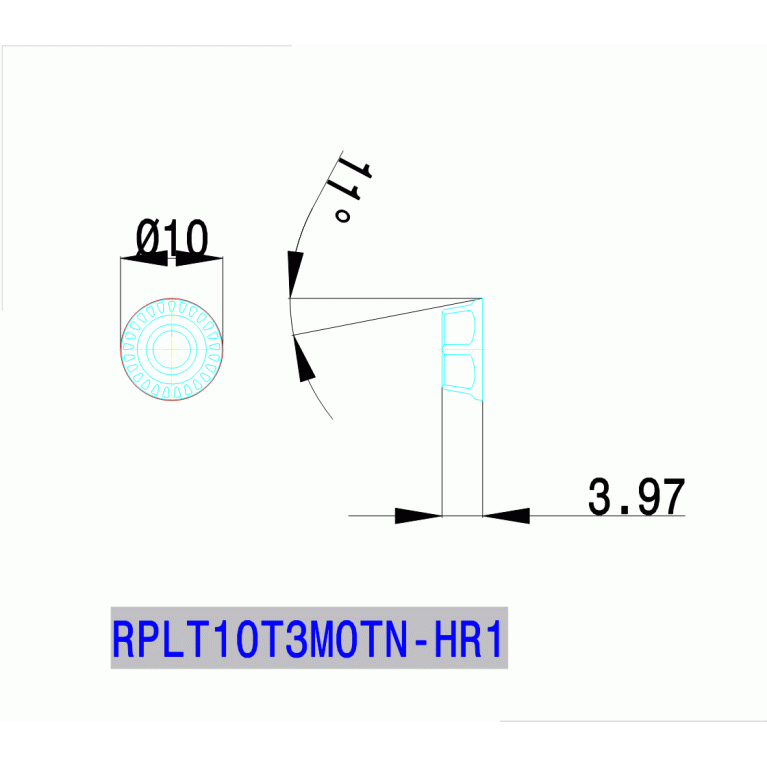

RPLT10T3M0TN-HR1 IN4035

Артикул: 5812875

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

CBMD Chip breaker manufacturers designation

COATN Coating

TiAlN+AlCrO

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4 mm

Delivery state

NL - Discontinued

DIN

RP10T3 3N

FamilyProducts

insert, min. six-edged, positive, geometry with K-land

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN4035

GRDPRIO Standard designation of the grade main application

P25-P50

IC Inscribed circle diameter

9.99 mm

ID Technical product number

5812875

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP10T3 3N

M M-dimension

9.99 mm

Name Identifying order number

RPLT10T3M0TN-HR1 IN4035

S Insert thickness

3.97 mm

S1 Insert thickness total

3.97 mm

STDDES Standard designation

RPLT10T3M0

TCINS Tolerance class insert

Working process

No working processes available
