Главная Каталог продукции Toolunited 11 201-10 - Round insert RPGN 120400 T6 TC430

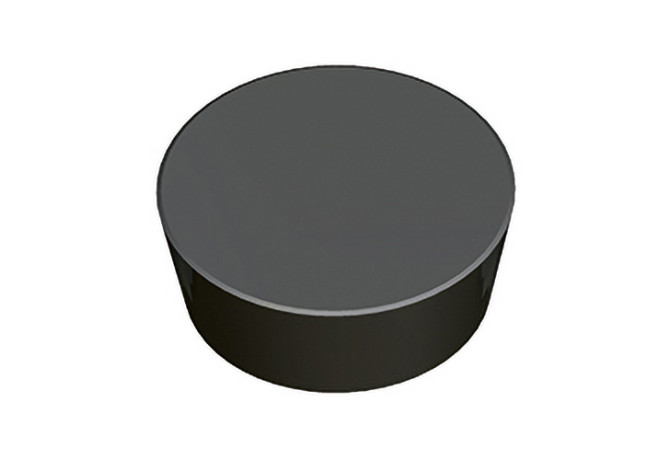

RPGN 120400 T6 TC430

Артикул: 5703422

В наличии

В корзину

Описание

Характеристики

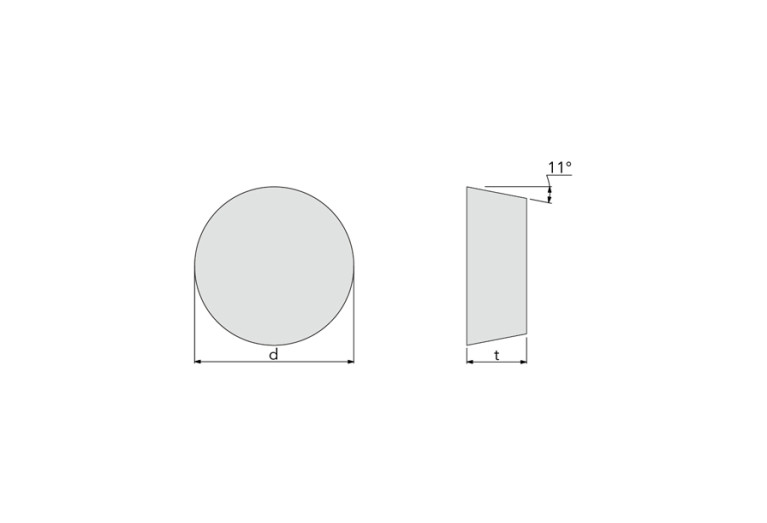

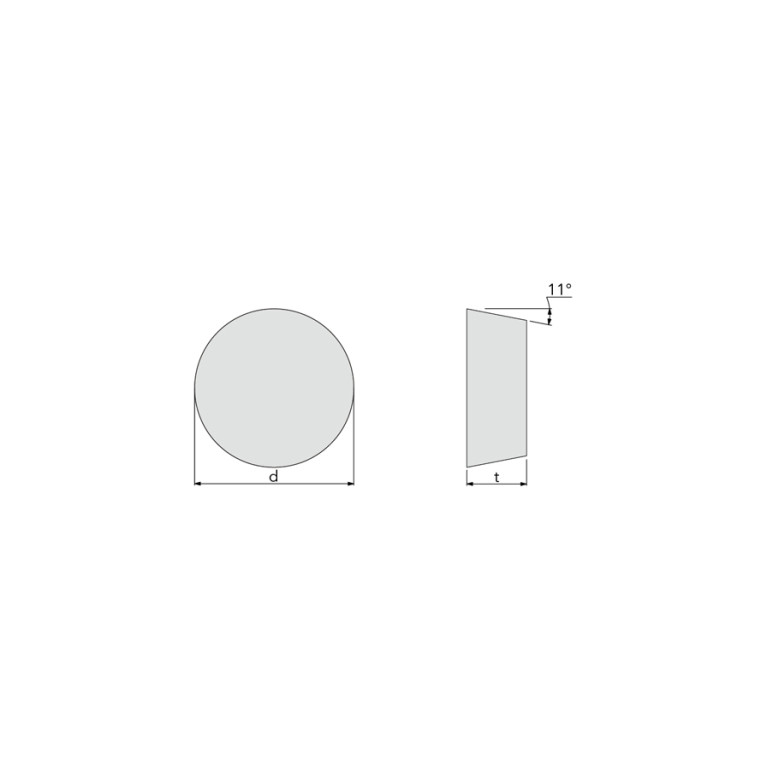

AN Clearance angle major

11 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating / Покрытие

Keramik

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

RP1204001N

FamilyProducts

insert, Positive Ceramic Round Insert - 11° clearance

GRD3RD Standard designation of the grade 3rd application

S01-S15

GRDMFG Grade manufacturers designation

TC430

IC Inscribed circle diameter

12 mm

ID Technical product number

5703422

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RP1204001N

M M-dimension

12 mm

Name Identifying order number

RPGN 120400 T6 TC430

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RPGN120400

STDDESAnsi Standard designation ANSI

RPGN430

TCINS Tolerance class insert

Working process

No working processes available
