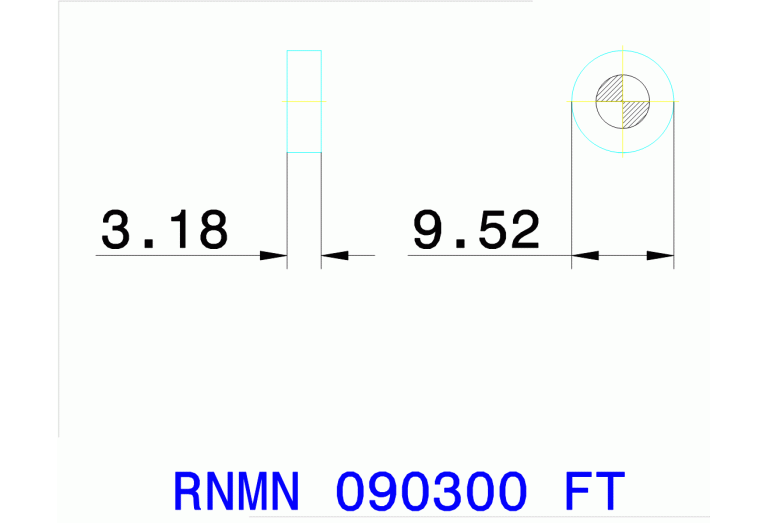

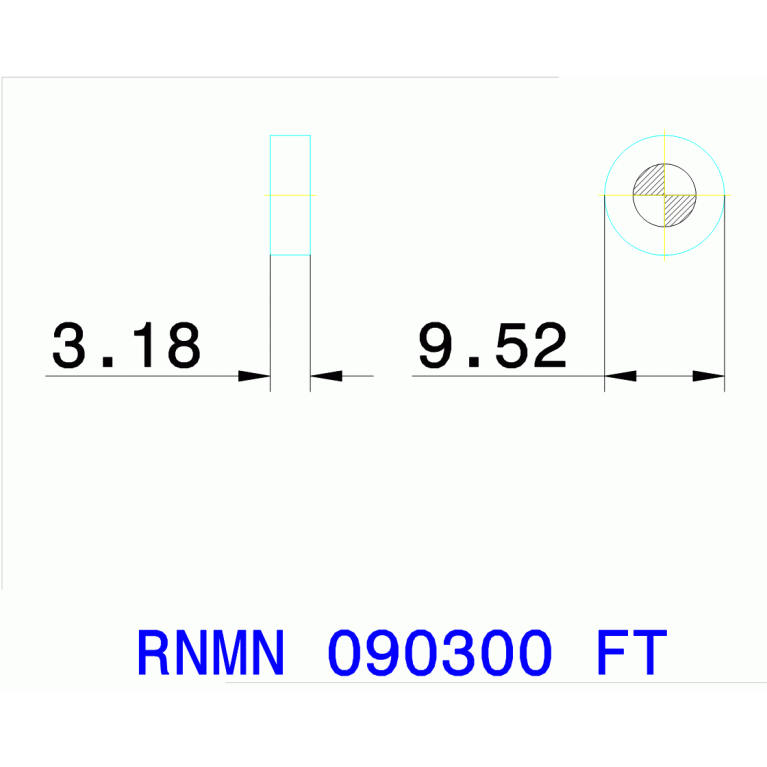

RNMN 090300 FT TB670

Артикул: 5403068

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

CBN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

RN0903001N

FamilyProducts

insert, Negative CBN Round Insert for high speed machining

GRDMFG Grade manufacturers designation

TB670

IC Inscribed circle diameter

9.52 mm

ID Technical product number

5403068

IFS Insert mounting style code

1 - Without bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN0903001N

M M-dimension

9.52 mm

Name Identifying order number

RNMN 090300 FT TB670

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RNMN090300

STDDESAnsi Standard designation ANSI

RNMN320

TCINS Tolerance class insert

Working process

No working processes available
