Главная Каталог продукции Toolunited 11 201-10 - Round insert RNMG 120400 TT8125

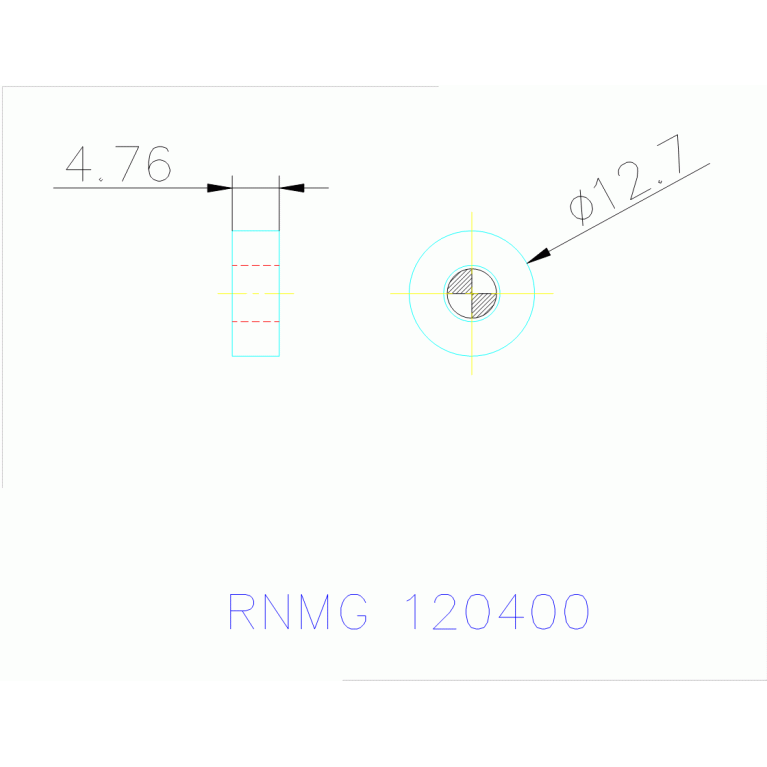

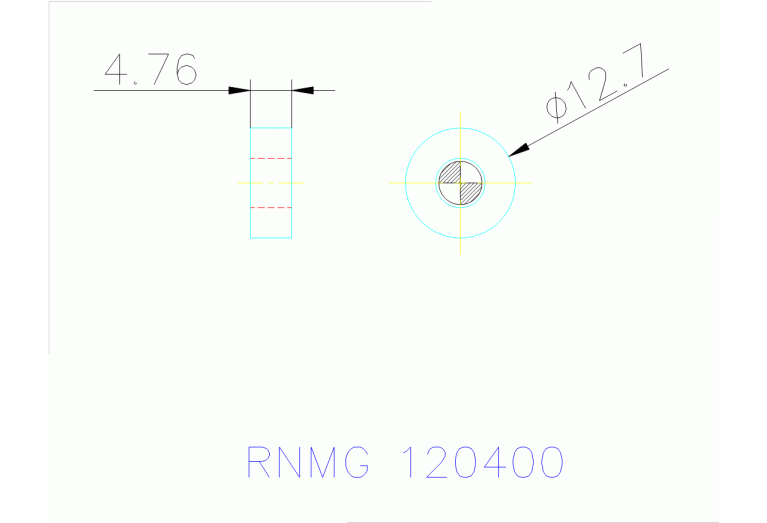

RNMG 120400 TT8125

Артикул: 5520170

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiCN+Al2O3+TiN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

RN1204001N

FamilyProducts

insert, Negative round inserts for medium roughing

GRDMFG Grade manufacturers designation

TT8125

GRDPRIO Standard designation of the grade main application

P15-P30

IC Inscribed circle diameter

12 mm

ID Technical product number

5520170

IFS Insert mounting style code

2 - With cylindrical bore

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1204001N

M M-dimension

12 mm

Name Identifying order number

RNMG 120400 TT8125

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RNMG120400

STDDESAnsi Standard designation ANSI

RNMG430

TCINS Tolerance class insert

Working process

No working processes available
