RNLU1205MON-M IN2035

Артикул: 5616322

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

0 Degree

CB Chip breaker face count

2 - With chip breaker on both sides

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

RN1205 5N

FamilyProducts

insert,

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

S20-S30

GRDMFG Grade manufacturers designation

IN2035

GRDPRIO Standard designation of the grade main application

P25-P50

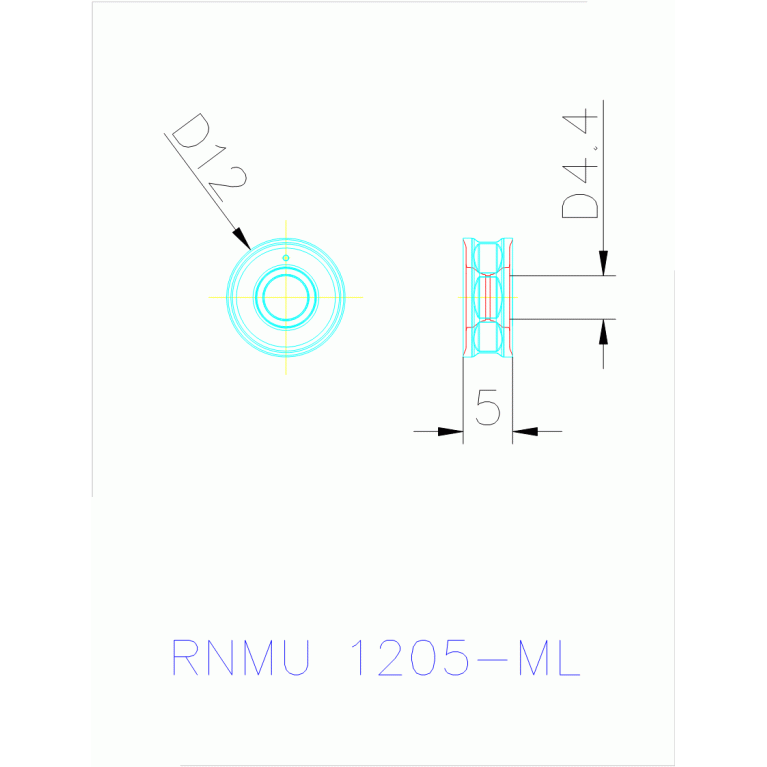

IC Inscribed circle diameter

12 mm

ID Technical product number

5616322

IFS Insert mounting style code

5 - Special production, e.g. trough clamping

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RN1205 5N

M M-dimension

12 mm

Name Identifying order number

RNLU1205MON-M IN2035

S Insert thickness

5 mm

S1 Insert thickness total

5 mm

STDDES Standard designation

RNLU1205M0

TCINS Tolerance class insert

Working process

No working processes available
