Главная Каталог продукции Toolunited 11 201-10 - Round insert RHKW1003M0TN IN2015

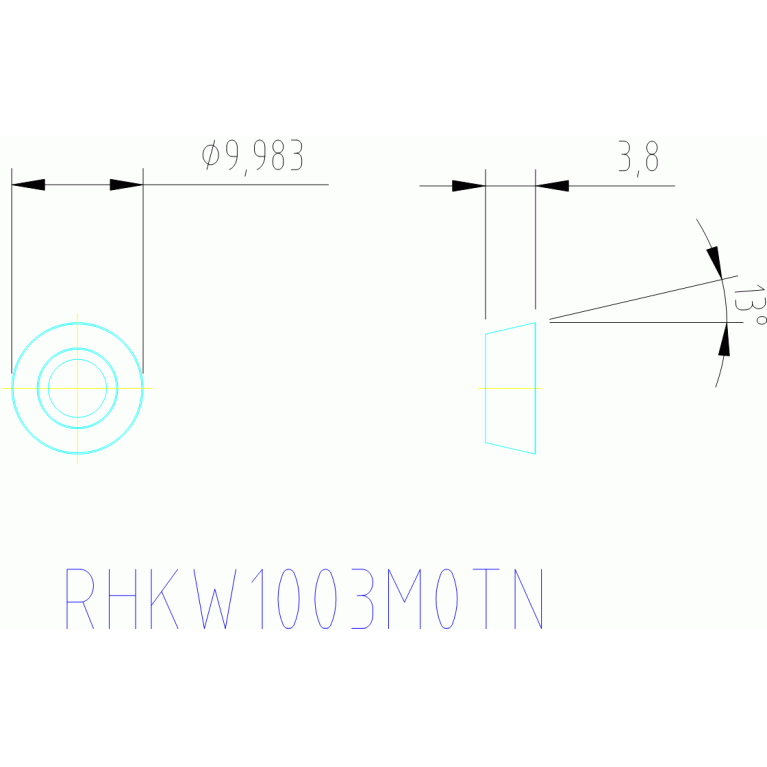

RHKW1003M0TN IN2015

Артикул: 5867270

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

13 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

RH1003 3N

FamilyProducts

insert, min. four-edged, neutral geometry with K-land for roughing

GRD2ND Standard designation of the grade 2nd application

M20-M40

GRD3RD Standard designation of the grade 3rd application

K20-K40

GRDMFG Grade manufacturers designation

IN2015

GRDPRIO Standard designation of the grade main application

P20-P35

IC Inscribed circle diameter

10 mm

ID Technical product number

5867270

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RH1003 3N

M M-dimension

10 mm

Name Identifying order number

RHKW1003M0TN IN2015

S Insert thickness

3.8 mm

S1 Insert thickness total

3.8 mm

STDDES Standard designation

RHKW1003M0

TCINS Tolerance class insert

K - Cold formed

Working process

No working processes available
