Главная Каталог продукции Toolunited 11 201-10 - Round insert RFMT1404M0N-F IN2540

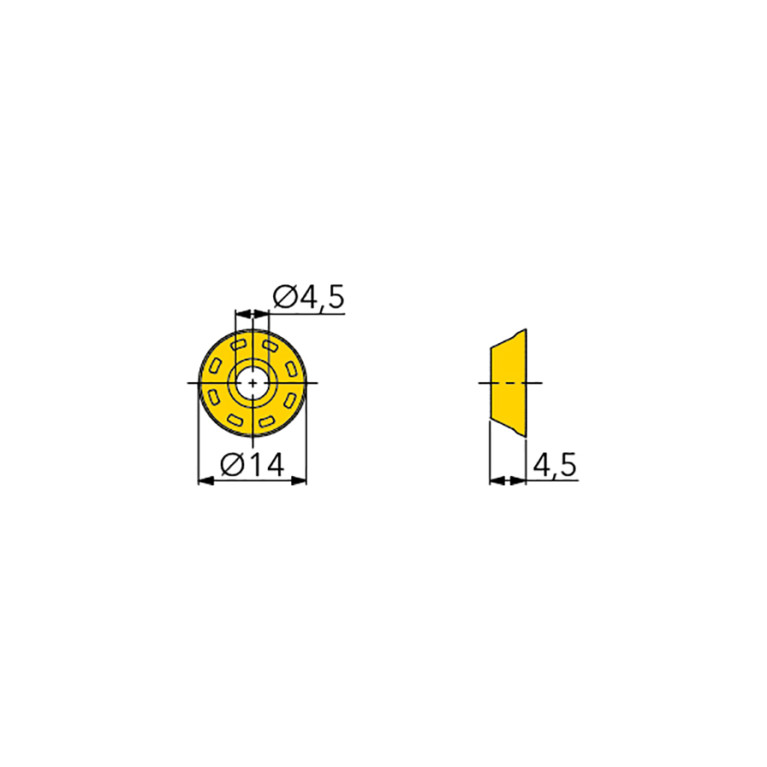

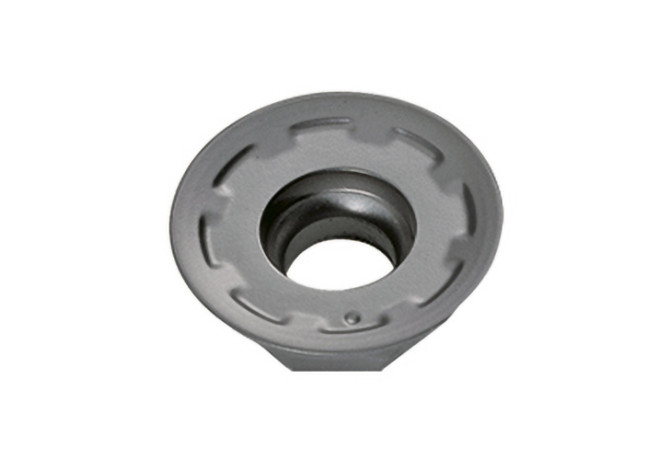

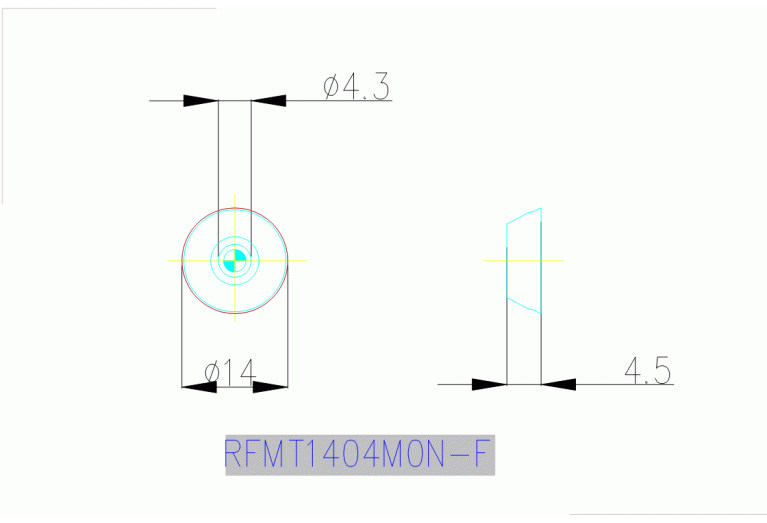

RFMT1404M0N-F IN2540

Артикул: 5813399

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

26 Degree

CB Chip breaker face count

1 - With chip breaker one-side

COATN Coating / Покрытие

TiAIN+TIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.35 mm

Delivery state

NL - Discontinued

DIN

RF1404 3N

FamilyProducts

insert, eight-edged, positive geometry with K-land

GRDMFG Grade manufacturers designation

IN2540

GRDPRIO Standard designation of the grade main application

P15-P35

IC Inscribed circle diameter

14 mm

ID Technical product number

5813399

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RF1404 3N

M M-dimension

14 mm

Name Identifying order number

RFMT1404M0N-F IN2540

S Insert thickness

4.53 mm

S1 Insert thickness total

4.53 mm

STDDES Standard designation

RFMT1404M0

STDDESAnsi Standard designation ANSI

RFMT4.53V

TCINS Tolerance class insert

Working process

No working processes available
