Главная Каталог продукции Toolunited 11 201-10 - Round insert RDHX2006M0-A57 WKP35S

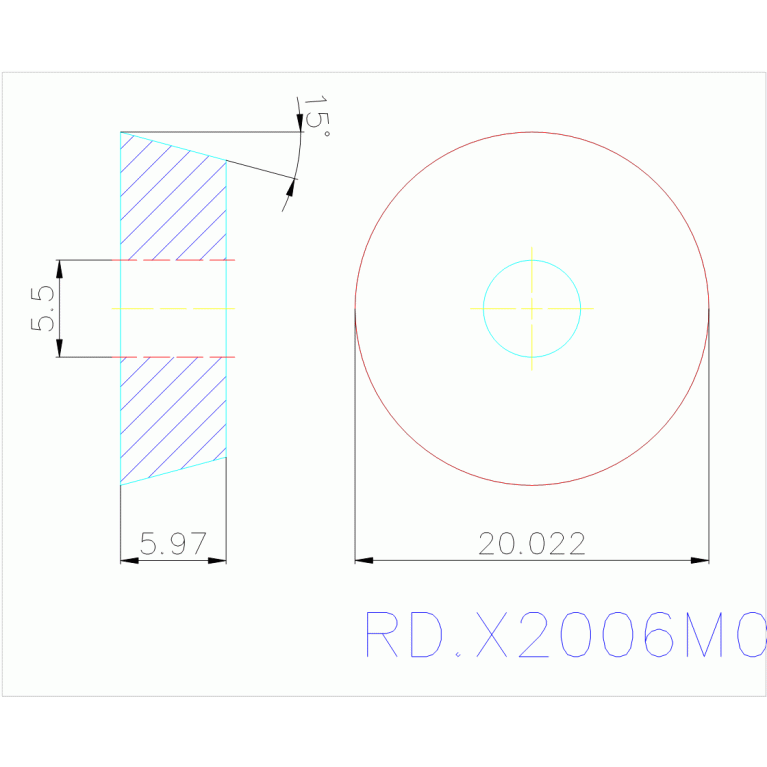

RDHX2006M0-A57 WKP35S

Артикул: 7924036

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

15 Degree

CBMD Chip breaker manufacturers designation

A57

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

TiCN+Al2O3+(TiCN)

COMPC Company code

W - Walter

CSP Coolant supply property

0 - Without coolant supply

D1 Fixing hole diameter

5.5 mm

Delivery state valid from

12/1/2023

DIN

W-RD2006WB3NB$$WB

FamilyProducts

Positive round RDHX

GRDMFG Grade manufacturers designation

WKP35S

IC Inscribed circle diameter

20 mm

ID Technical product number

7924036

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 / J441

ISISO ISO property

ISO

WR$$RD2006WB3NB$$WB

ISYC Subclass

201-10 - Round insert

LOC-03 ISO

WR$$RD2006WB3NB$$WB

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

W-RD2006WB3NB$$WB

M M-dimension

20 mm

Name Identifying order number

RDHX2006M0-A57 WKP35S

S Insert thickness

6 mm

S1 Insert thickness total

6 mm

STDDES Standard designation

RDHX2006M0

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

FPL - Face milling

WT Weight of item

0.011 kg
