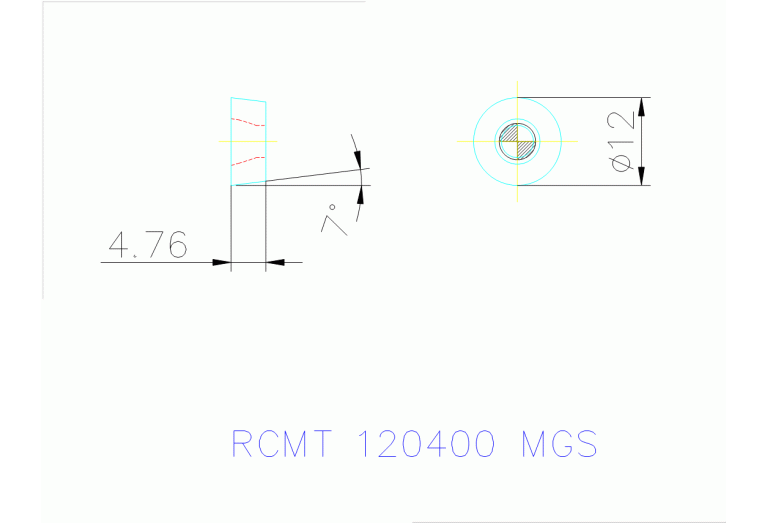

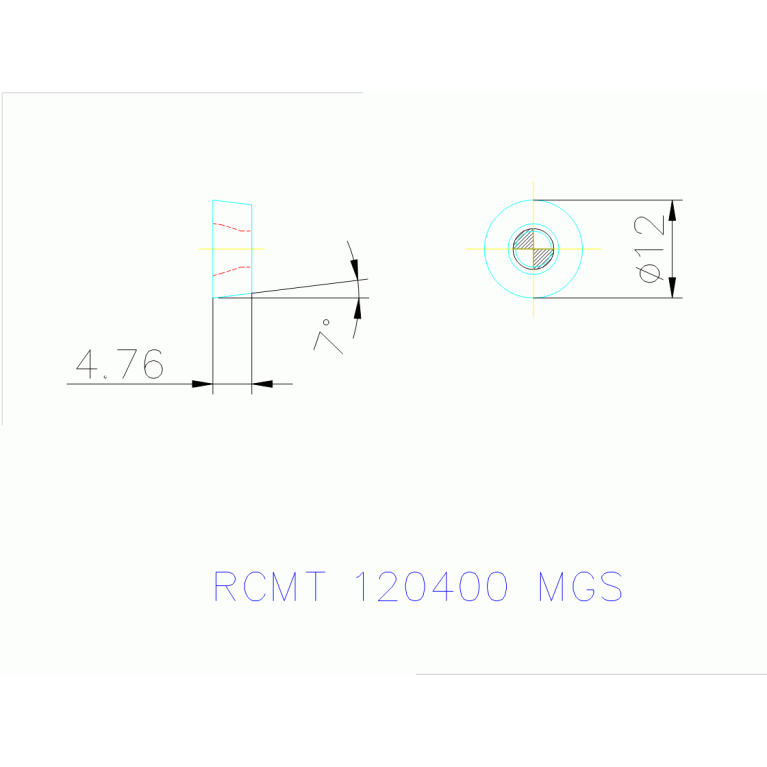

RCMT 120400 MGS TT3020

Артикул: 6184975

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

AlTiN/TiN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

LL - Stock limited

DIN

RC1204003N

FamilyProducts

insert, Chipbreaker, positive 7° clearance round inserts for light and medium machining

GRD2ND Standard designation of the grade 2nd application

M10-M30

GRD3RD Standard designation of the grade 3rd application

S10-S30

GRDMFG Grade manufacturers designation

TT3020

IC Inscribed circle diameter

12 mm

ID Technical product number

6184975

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204003N

M M-dimension

12 mm

MIID Master insert identification

RCMT120400 TT3020

Name Identifying order number

RCMT 120400 MGS TT3020

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCMT120400

STDDESAnsi Standard designation ANSI

RCMT430

TCINS Tolerance class insert

Working process

No working processes available
