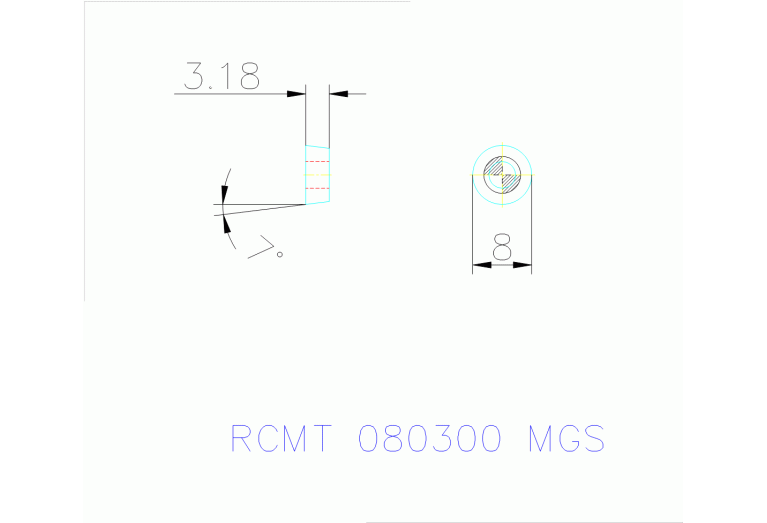

RCMT 080300 MGS K10

Артикул: 6318922

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

RC0803003N

FamilyProducts

insert, Chipbreaker, positive 7° clearance round inserts for light and medium machining

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

K10

GRDPRIO Standard designation of the grade main application

N05-N15

IC Inscribed circle diameter

8 mm

ID Technical product number

6318922

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0803003N

M M-dimension

8 mm

MIID Master insert identification

RCMT080300 K10

Name Identifying order number

RCMT 080300 MGS K10

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCMT080300

TCINS Tolerance class insert

Working process

No working processes available
