Главная Каталог продукции Toolunited 11 201-10 - Round insert RCLT1204M0TN-PH2 IN2040

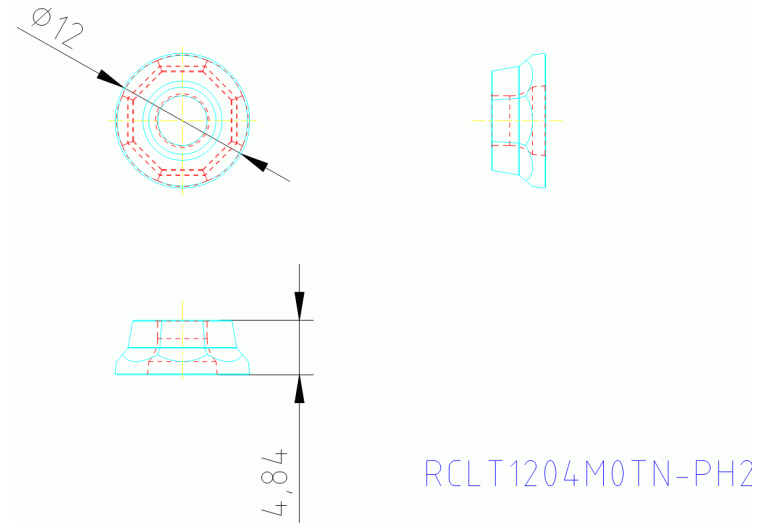

RCLT1204M0TN-PH2 IN2040

Артикул: 5812603

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

1 - With chip breaker one-side

CBMD Chip breaker manufacturers designation

COATN Coating

TiAIN

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

4.4 mm

Delivery state

NL - Discontinued

DIN

RC1204 3N

FamilyProducts

insert, eight-edged, positive steel geometry with K-land

GRDMFG Grade manufacturers designation

IN2040

GRDPRIO Standard designation of the grade main application

P15-P35

IC Inscribed circle diameter

12 mm

ID Technical product number

5812603

IFS Insert mounting style code

3 - Counter bore for screws with taper angle from 40° to 60°

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC1204 3N

M M-dimension

12 mm

Name Identifying order number

RCLT1204M0TN-PH2 IN2040

S Insert thickness

4.76 mm

S1 Insert thickness total

4.76 mm

STDDES Standard designation

RCLT1204M0

STDDESAnsi Standard designation ANSI

RCLT43V

TCINS Tolerance class insert

Working process

No working processes available
