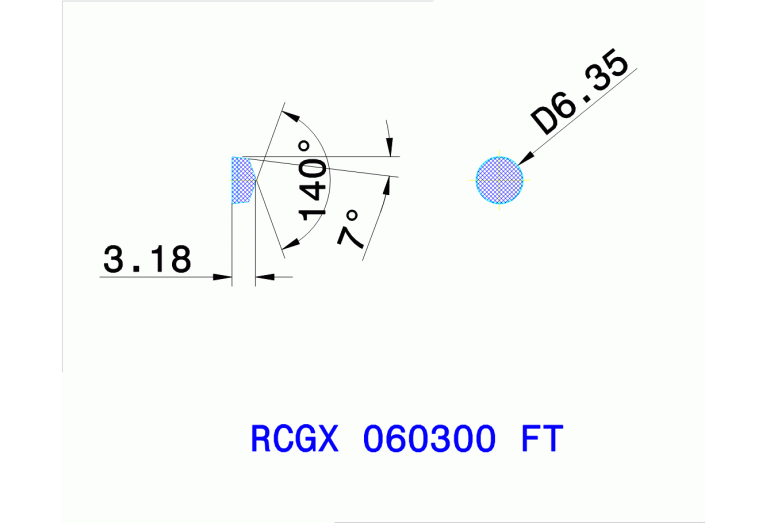

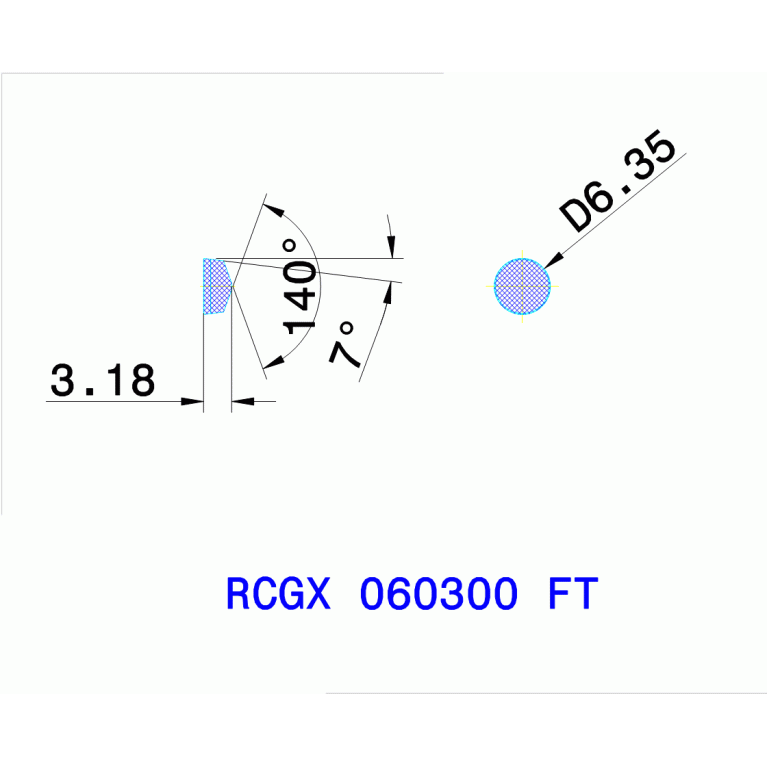

RCGX 060300 FT TB730

Артикул: 5403147

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

CBN

COMPC Company code

IL - Ingersoll

Delivery state

NL - Discontinued

DIN

RC0603007N

FamilyProducts

insert, Positive CBN Round Insert 140° Style - 7° clearance for high speed machining

GRD2ND Standard designation of the grade 2nd application

K15-K25

GRDMFG Grade manufacturers designation

TB730

IC Inscribed circle diameter

6.35 mm

ID Technical product number

5403147

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

RC0603007N

M M-dimension

6.35 mm

Name Identifying order number

RCGX 060300 FT TB730

S Insert thickness

3.18 mm

S1 Insert thickness total

3.18 mm

STDDES Standard designation

RCGX060300

STDDESAnsi Standard designation ANSI

RCGX220

TCINS Tolerance class insert

Working process

No working processes available
