Главная Каталог продукции Toolunited 11 201-10 - Round insert RBGX 16W AB30

RBGX 16W AB30

Артикул: 6185128

В наличии

В корзину

Описание

Характеристики

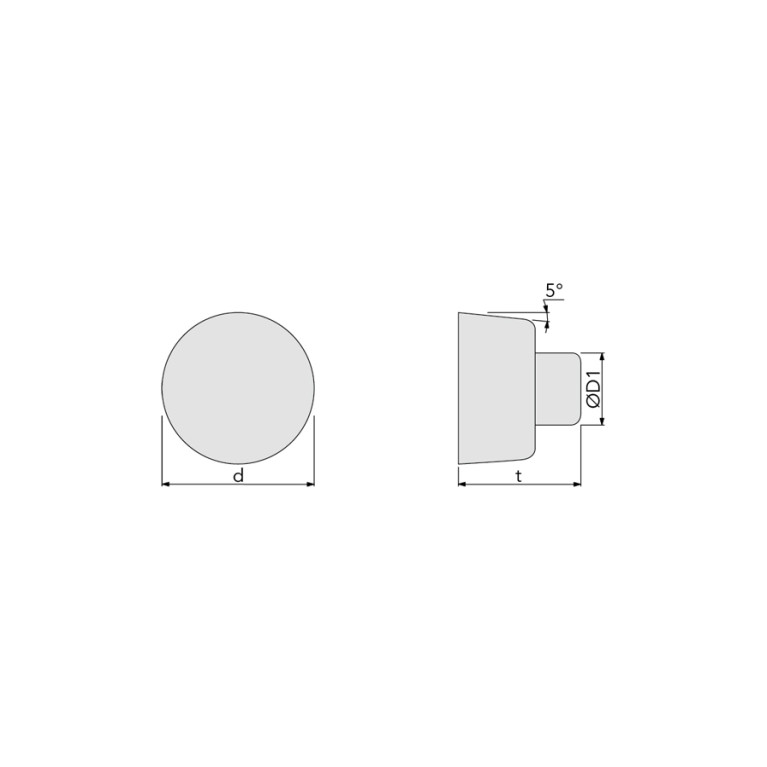

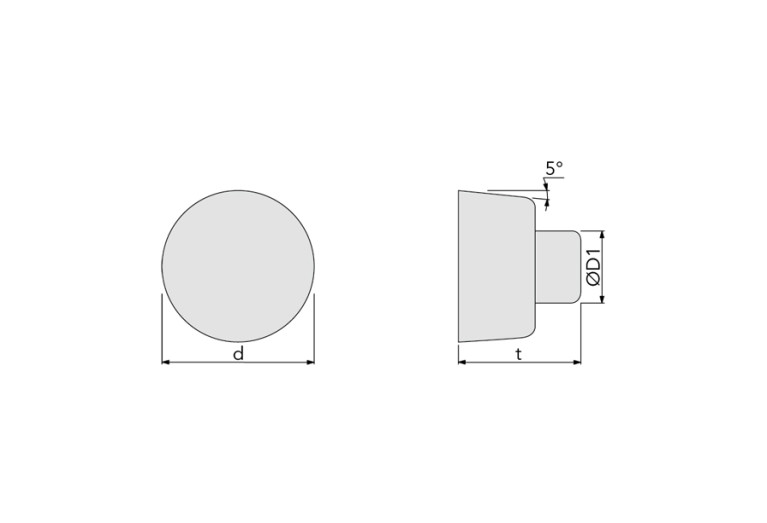

AN Clearance angle major

5 Degree

CB Chip breaker face count

0 - Without chip breaker

COATN Coating

Keramik

COMPC Company code

IL - Ingersoll

D1 Fixing hole diameter

8 mm

Delivery state

NL - Discontinued

DIN

IL-WSP-1371

FamilyProducts

insert, Ceramic Round Insert

GRD2ND Standard designation of the grade 2nd application

K05-K15

GRDMFG Grade manufacturers designation

AB30

IC Inscribed circle diameter

16 mm

ID Technical product number

6185128

IFS Insert mounting style code

7 - Prismatic clamping, concave

IH Insert hand

N - Neutral

Interface codes

J6 /

ISISO ISO property

ISYC Subclass

201-10 - Round insert

LOC-03-Connection-codes

J6 / J441 - connection code machine end

LOC-03-DIN

IL-WSP-1371

M M-dimension

16 mm

Name Identifying order number

RBGX 16W AB30

S Insert thickness

13 mm

S1 Insert thickness total

13 mm

TCINS Tolerance class insert

Working process

No working processes available
