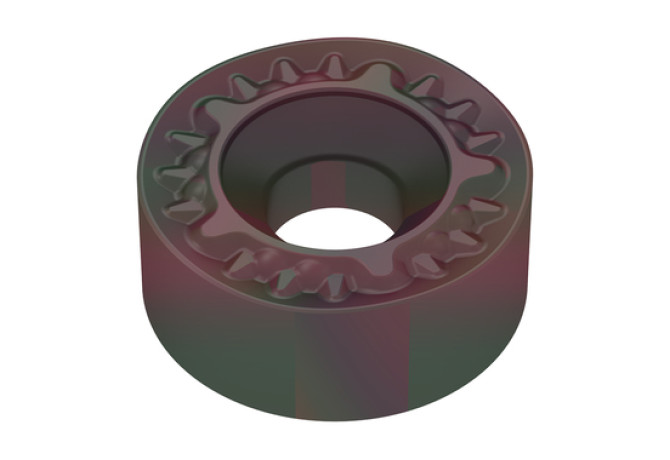

Главная Каталог продукции Toolunited 11 201-10 - Round insert 7403242000

7403242000

Артикул: 7403242000

В наличии

В корзину

Описание

Характеристики

CBMD Chip breaker manufacturers designation

-R56

CECC Cutting edge condition code

E - Rounded

COATN Coating

CTCP625

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

9 mm

FamilyProducts

HM SCHÄLWENDEPLATTE

FLSC Face land size code

E00

GRD2ND Standard designation of the grade 2nd application

HC-M25

GRD3RD Standard designation of the grade 3rd application

HC-S25

GRDPRIO Standard designation of the grade main application

HC-P25

IC Inscribed circle diameter

28 mm

IH Insert hand

L - Left

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

28 mm

Name Identifying order number

7403242000

S Insert thickness

10.5 mm

TCINS Tolerance class insert

Working process

No working processes available
