71316202

Артикул: 71316202

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

7 Degree

CBMD Chip breaker manufacturers designation

-CB2

CECC Cutting edge condition code

F - Sharpedged

COATN Coating

CTDPS30

COMPC Company code

CE - Ceratizit

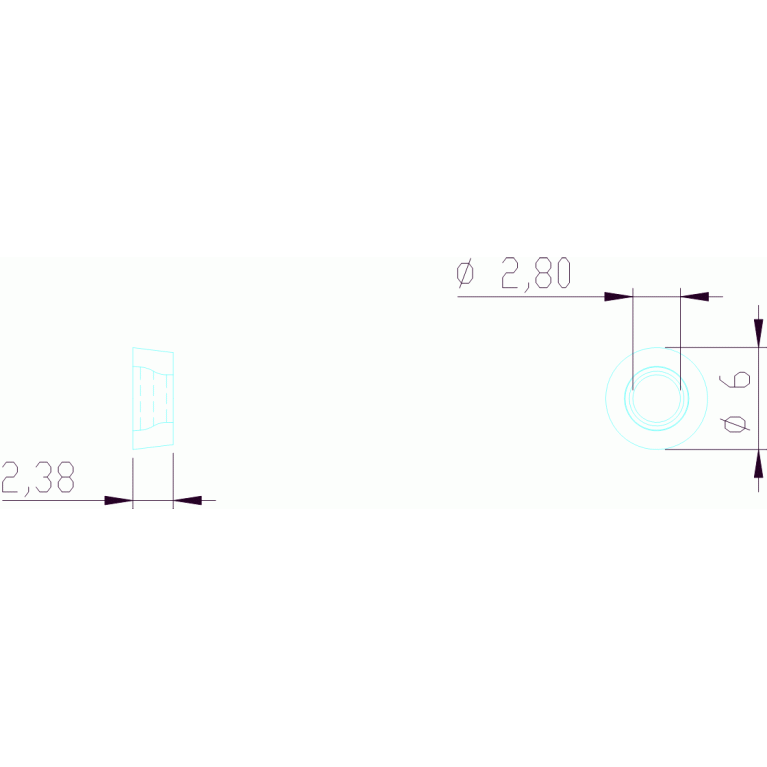

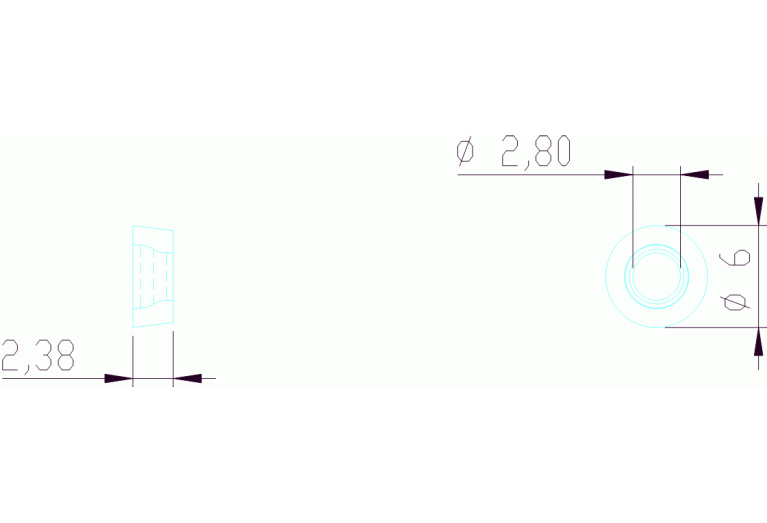

D1 Fixing hole diameter

2.8 mm

Delivery state valid from

10/1/2021

FamilyProducts

PKD-DREHWENDEPLATTE

GRDPRIO Standard designation of the grade main application

DP-N30

IC Inscribed circle diameter

6 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

6 mm

Name Identifying order number

71316202

S Insert thickness

2.38 mm

TCE Tipped cutting edge code

TCINS Tolerance class insert

Working process

No working processes available
