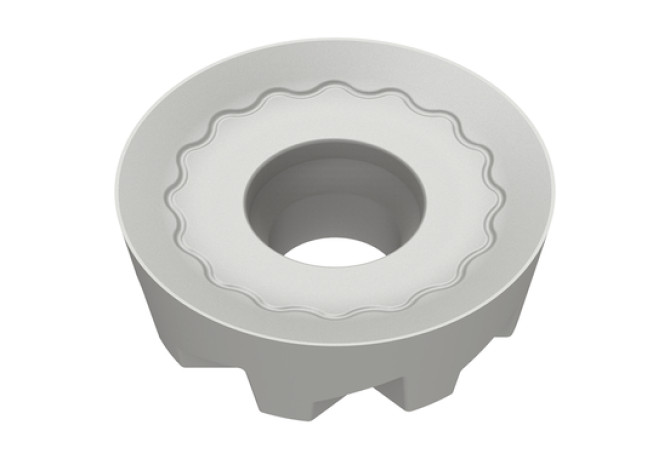

Главная Каталог продукции Toolunited 11 201-10 - Round insert 5114912001

5114912001

Артикул: 5114912001

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

-M31

CECC Cutting edge condition code

F - Sharpedged

COATN Coating / Покрытие

CTC5240

COMPC Company code

CE - Ceratizit

D1 Fixing hole diameter

6 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRDPRIO Standard designation of the grade main application

HC-S40

IC Inscribed circle diameter

20 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

20 mm

Name Identifying order number

5114912001

S Insert thickness

6.35 mm

TCINS Tolerance class insert

Working process

No working processes available
