51051570
51051570
Артикул:
51051570
В наличии
Характеристики
AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
-F50
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
CTCS245
COMPC Company code
CE - Ceratizit

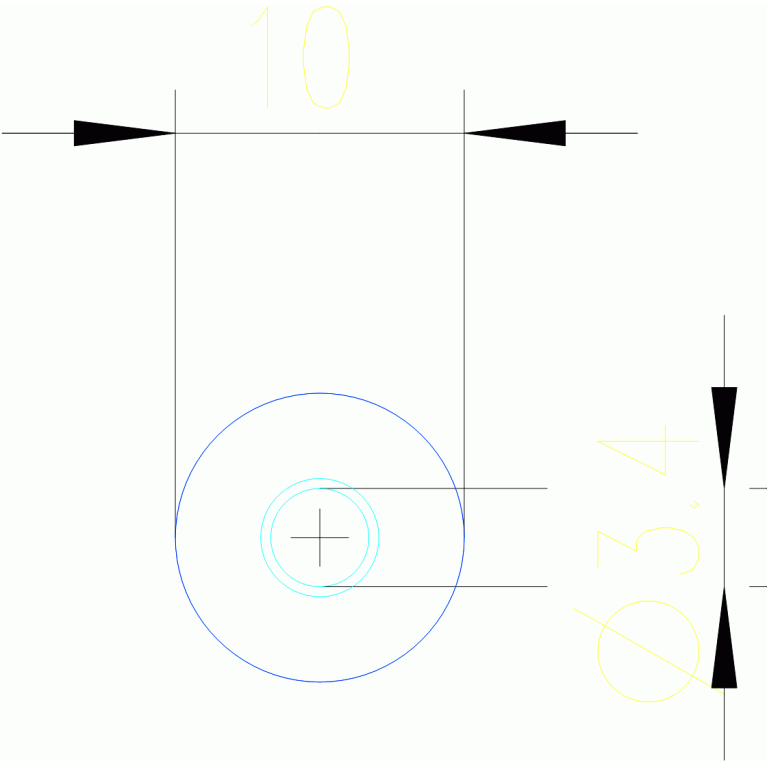

D1 Fixing hole diameter
3.4 mm
Delivery state valid from
10/1/2021
FamilyProducts
HM-FRÄSWENDEPLATTE
GRDPRIO Standard designation of the grade main application
HC-S45
IC Inscribed circle diameter
10 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass

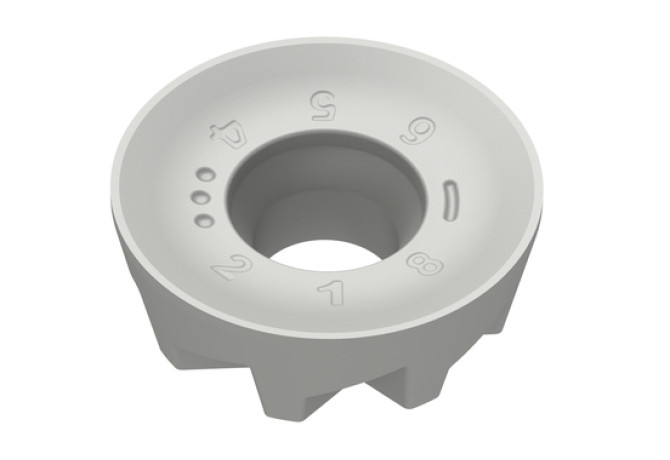

201-10 - Round insert
M M-dimension
10 mm
Name Identifying order number
51051570
S Insert thickness
3.97 mm
TCINS Tolerance class insert
H
Working process
No working processes available
