51051125

Артикул: 51051125

В наличии

В корзину

Описание

Характеристики

AN Clearance angle major

11 Degree

CBMD Chip breaker manufacturers designation

-F50

CECC Cutting edge condition code

S - Chamfered and rounded

COATN Coating

CTPP235

COMPC Company code

CE - Ceratizit

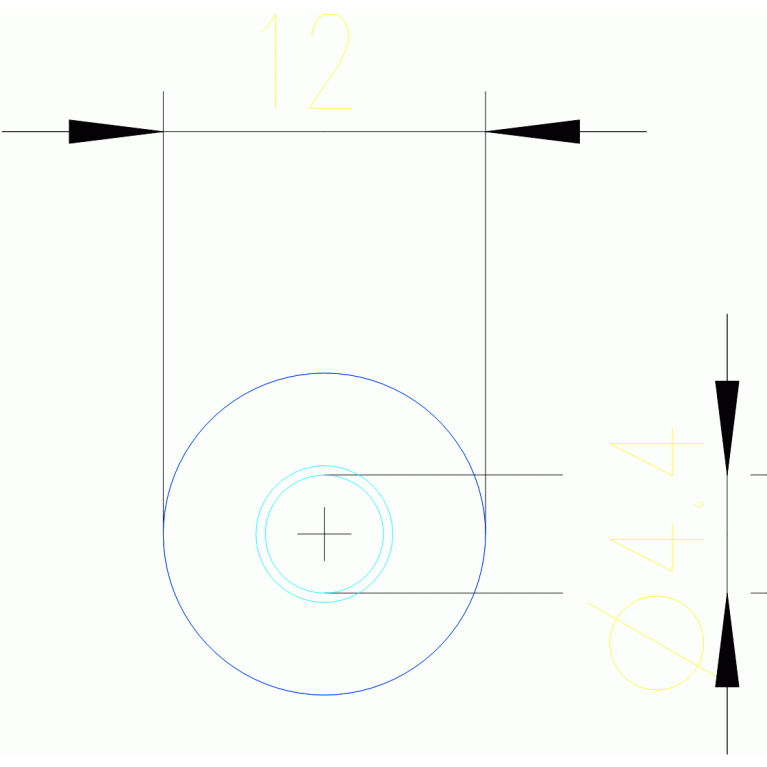

D1 Fixing hole diameter

4.4 mm

Delivery state valid from

10/1/2021

FamilyProducts

HM-FRÄSWENDEPLATTE

GRD2ND Standard designation of the grade 2nd application

HC-M30

GRDPRIO Standard designation of the grade main application

HC-P35

IC Inscribed circle diameter

12 mm

IH Insert hand

N - Neutral

Interface codes

ISISO ISO property

ISYC Subclass

201-10 - Round insert

M M-dimension

12 mm

Name Identifying order number

51051125

S Insert thickness

4.76 mm

TCINS Tolerance class insert

Working process

No working processes available
