50483902
50483902
Артикул:
50483902
В наличии
Характеристики
AN Clearance angle major
11 Degree
CBMD Chip breaker manufacturers designation
-SN
CECC Cutting edge condition code
S - Chamfered and rounded
COATN Coating
TCM10
COMPC Company code
CE - Ceratizit
D1 Fixing hole diameter
4.4 mm
Delivery state valid from
10/1/2021
FamilyProducts
CERMET-FRÄSWENDEPLATTE
GRD2ND Standard designation of the grade 2nd application
HT-M10
GRDPRIO Standard designation of the grade main application
HT-P15

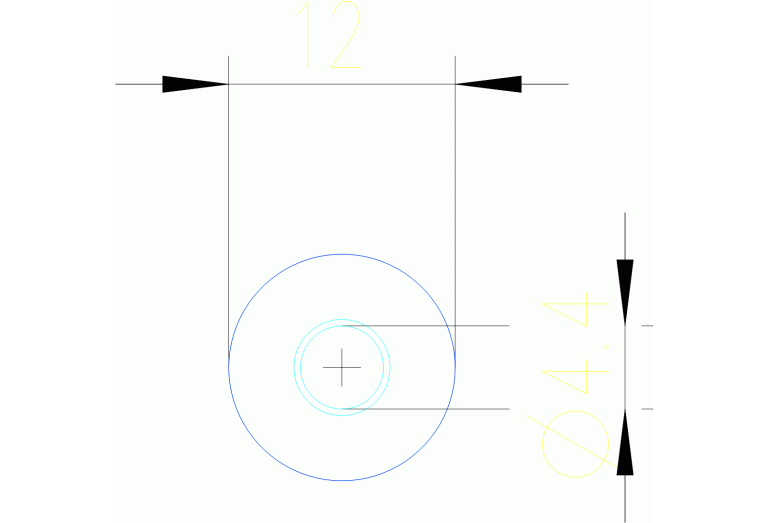

IC Inscribed circle diameter
12 mm
IH Insert hand
N - Neutral
Interface codes
/
ISISO ISO property
1
ISYC Subclass
201-10 - Round insert
M M-dimension
12 mm
Name Identifying order number
50483902
S Insert thickness
4.76 mm
TCINS Tolerance class insert
H
Working process
No working processes available
