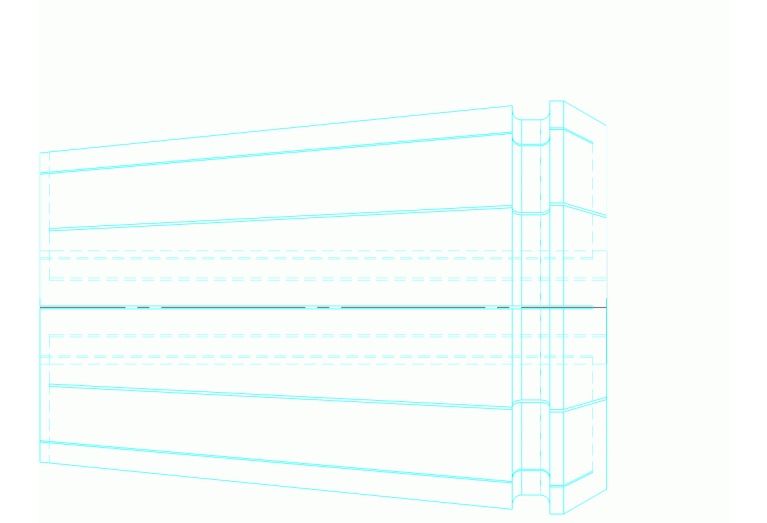

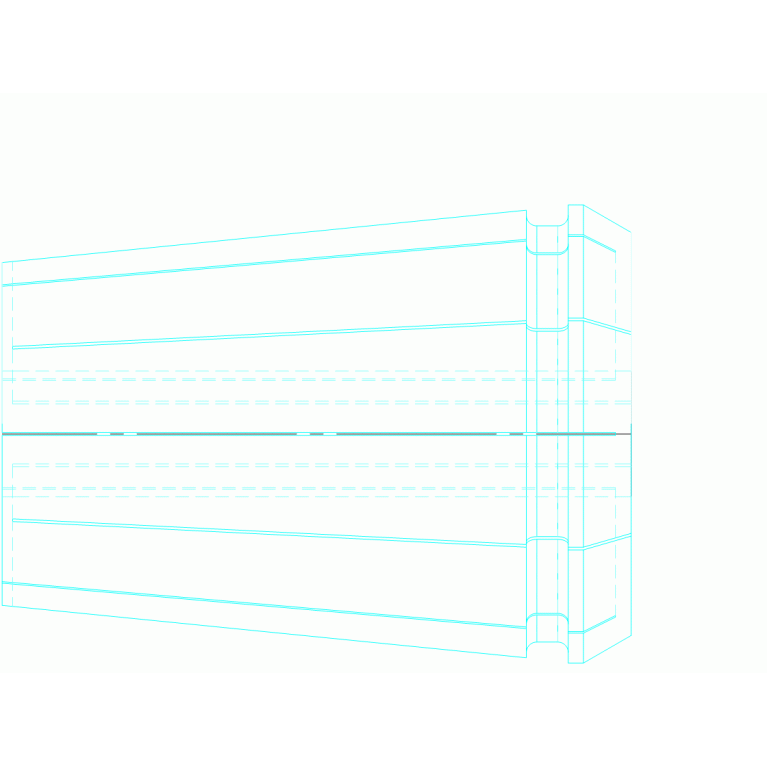

Главная Каталог продукции Toolunited 11 405-01 - Double angle collet 82662120

82662120

Артикул: 82662120

В наличии

В корзину

Описание

Характеристики

BD Body diameter

43.7 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

CE - Ceratizit

CZCWS Connection size code

0120

DCLC Diameter collet length clamp

41.3 mm

DCOB Diameter collet offset bore

32.1 mm

DFC Functional diameter

32 mm

DIN

SZD03200185

FamilyProducts

SPANNZANGE

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LCOB Length collet offset bore

12 mm

LDG Gauge diameter distance

7 mm

LFSF Distance to face

6 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0120

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01200105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0320

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD03200185

Name Identifying order number

82662120

OAL Overall length

60 mm

SEALP Sealing

0 - Without sealing

STDLET Standard letter to the standard number

STDNO Standard

DIN ISO 10897

SZID Size identification

TG Taper ratio

1:10

UNNO Unified number

467 E
