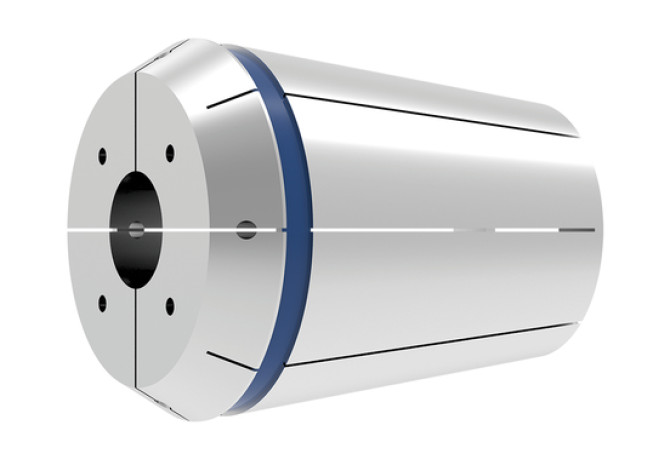

Главная Каталог продукции Toolunited 11 405-01 - Double angle collet 82658140

82658140

Артикул: 82658140

В наличии

В корзину

Описание

Характеристики

BD Body diameter

40.7 mm

CCFWS Connection code form

CCSWS Connection code style

CCTWS Connection code type

ZYL

CCUWS Connection code unit base

COMPC Company code

CE - Ceratizit

CZCWS Connection size code

0140

DCLC Diameter collet length clamp

36.2 mm

DFC Functional diameter

40 mm

DIN

SZD04000285

FamilyProducts

SPANNZANGE MIT INNENVIERKANT

Interface codes

J6 /

ISYC Subclass

405-01 - Double angle collet

LDG Gauge diameter distance

3.5 mm

LFSF Distance to face

7 mm

LOC-01 CCFWS Connection code form

LOC-01 CCSWS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-01 CCTWS Connection code type

ZYL cylindrical shank

LOC-01 CCUWS Connection code unit base

0 Metric

LOC-01 CZCWS Connection size code

0140

LOC-01-Connection-codes

J4 / J431 - Workpiece end

LOC-01-DIN

ZYL01402105

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SZD Collet adapter DIN / ISO

LOC-03 CCUMS Connection code unit base

8 non-dimensional size

LOC-03 CZCMS Connection size code

0400

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SZD04000285

Name Identifying order number

82658140

OAL Overall length

46 mm

SEALP Sealing

0 - Without sealing

STDLET Standard letter to the standard number

STDNO Standard

DIN ISO 15488

SZID Size identification

UNNO Unified number

4716 E
