Артикул:
50241400
В наличии
Характеристики

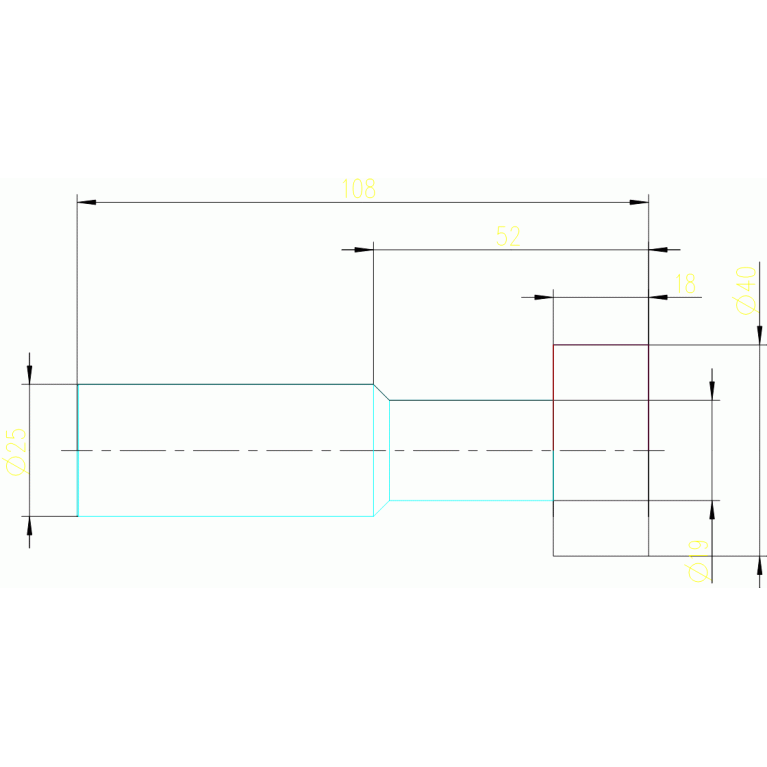

APMX Depth of cut maximum
18 mm
COATN Coating
ohne
COMPC Company code
CE - Ceratizit
DC Cutting diameter
40 mm
Delivery state valid from
10/1/2021
DIN
ZYL02501005
DN Neck diameter
19 mm
FamilyProducts
HSSE T-NUTENFRÄSER
FHA Flute helix angle
20 Degree
FHH Flute helix hand
R - Hand of helix right
GAMP Rake angle axial
11 Degree
Interface codes
J6 /
ISYC Subclass
303-05 - T-slot end mill
LOC-03 CCFMS Connection code form
10
LOC-03 CCSMS Connection code style
5 Shaft in machine direction or hole in workpiece direction
LOC-03 CCTMS Connection code type
ZYL cylindrical shank
LOC-03 CCUMS Connection code unit base
0 Metric
LOC-03 CZCMS Connection size code
0250
LOC-03 DCONMS Diameter
25 mm
LOC-03-Connection-codes
J6 / J61 - connection code machine end
LOC-03-DIN
ZYL02501005
LPR Protruding length
52 mm
LS Shank length
56 mm
Name Identifying order number
50241400
OAL Overall length
108 mm
Working process
No working processes available
ZEFP Peripheral effective cutting edge count
8
