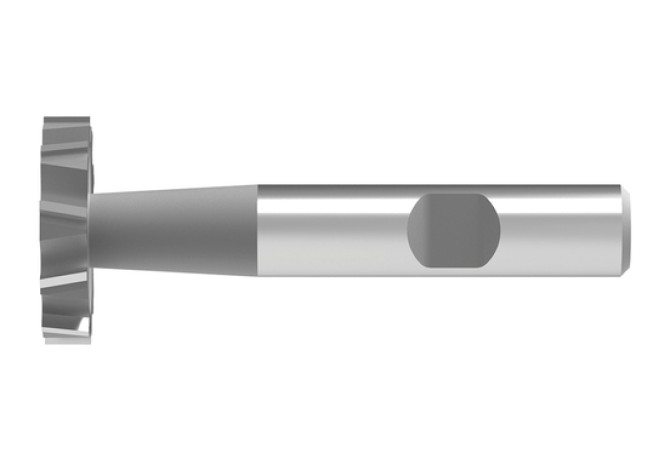

Главная Каталог продукции Toolunited 11 303-05 - T-slot end mill 50234101

50234101

Артикул: 50234101

В наличии

В корзину

Описание

Характеристики

APMX Depth of cut maximum

2.5 mm

COATN Coating

ohne

COMPC Company code

CE - Ceratizit

DC Cutting diameter

10.5 mm

Delivery state valid from

10/1/2021

DIN

ZYL00601005

DN Neck diameter

4.2 mm

FamilyProducts

HSSE SCHLITZFRÄSER

FHA Flute helix angle

10 Degree

FHH Flute helix hand

R - Hand of helix right

GAMP Rake angle axial

10 Degree

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

ZYL cylindrical shank

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0060

LOC-03 DCONMS Diameter

6 mm

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

ZYL00601005

LPR Protruding length

14 mm

LS Shank length

36 mm

Name Identifying order number

50234101

OAL Overall length

50 mm

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
