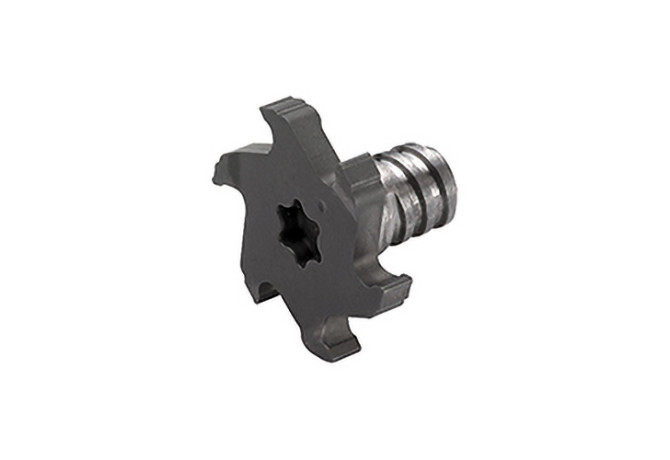

Главная Каталог продукции Toolunited 11 303-05 - T-slot end mill 18T14019TQRR000 IN30M

18T14019TQRR000 IN30M

Артикул: 8402381

В наличии

В корзину

Описание

Характеристики

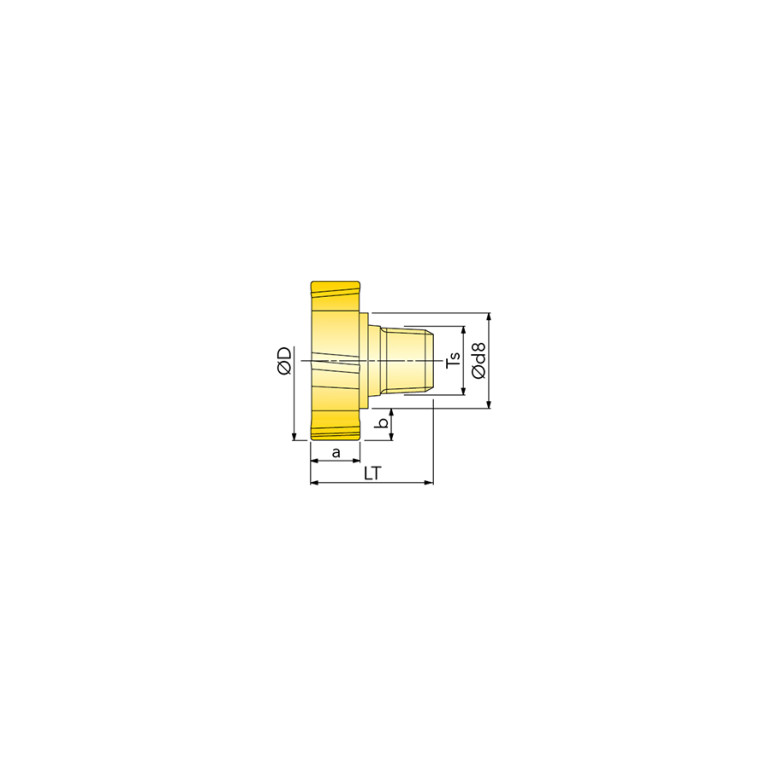

APMX Depth of cut maximum

2.8 mm

BMC Body material code

H - Solid carbide

CNSC Coolant entry style code

0 - Without coolant entry

COMPC Company code

IL - Ingersoll

CXSC Coolant exit style code

0 - Without coolant exit

DC Cutting diameter

14 mm

DCP Data chip provision

0 - Without data chip

Delivery state

LA - Soon discontinued

DIN

SAI00500105

DN Neck diameter

8 mm

FamilyProducts

T-Slot blank Ø 14 - 19,4

GRD2ND Standard designation of the grade 2nd application

HW-K50

GRDMFG Grade manufacturers designation

IN30M

GRDPRIO Standard designation of the grade main application

HW-M40

HAND Cutting direction

R - Right

ID Technical product number

8402381

Interface codes

J6 /

ISYC Subclass

303-05 - T-slot end mill

LOC-03 CCFMS Connection code form

LOC-03 CCSMS Connection code style

5 Shaft in machine direction or hole in workpiece direction

LOC-03 CCTMS Connection code type

SAI Screw mounting ISCAR

LOC-03 CCUMS Connection code unit base

0 Metric

LOC-03 CZCMS Connection size code

0050

LOC-03-Connection-codes

J6 / J61 - connection code machine end

LOC-03-DIN

SAI00500105

Name Identifying order number

18T14019TQRR000 IN30M

OAL Overall length

7.1 mm

THSZMS Connection thread nominal size machine side

Working process

No working processes available

ZEFP Peripheral effective cutting edge count
